KSVRA-2
超硬 センターVエンドミル（先端R付）
Previous
Next
切削条件参考
| 被削材 | 炭素鋼・一般構造用鋼 S55C・SS材 | 合金鋼・工具鋼 SCM・SKT・SKS・SKD | アルミニウム合金 ADC・AC | 鋳 鉄 FC・FCD |
||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 加工種類 | 面取り・側面加工 | V溝加工 | センターモミ・穴あけ | 面取り・側面加工 | V溝加工 | センターモミ・穴あけ | 面取り・側面加工 | V溝加工 | センターモミ・穴あけ | 面取り・側面加工 | V溝加工 | センターモミ・穴あけ | ||||||||||||
| 刃 径 mm | 切削速度 m/min | 送り速度 ㎜/rev | 切削速度 m/min | 送り速度 ㎜/rev | 切削速度 m/min | 送り速度 ㎜/rev | 切削速度 m/min | 送り速度 ㎜/rev | 切削速度 m/min | 送り速度 ㎜/rev | 切削速度 m/min | 送り速度 ㎜/rev | 切削速度 m/min | 送り速度 ㎜/rev | 切削速度 m/min | 送り速度 ㎜/rev | 切削速度 m/min | 送り速度 ㎜/rev | 切削速度 m/min | 送り速度 ㎜/rev | 切削速度 m/min | 送り速度 ㎜/rev | 切削速度 m/min | 送り速度 ㎜/rev |
| 1 | 20～35 | 0.015～0.035 | 20～35 | 0.015～0.035 | 20～35 | 0.025～0.045 | 15～30 | 0.01～0.025 | 15～30 | 0.003～0.008 | 15～30 | 0.01～0.03 | 60～120 | 0.03～0.05 | 60～120 | 0.03～0.05 | 60～120 | 0.05～0.09 | 45～70 | 0.03～0.05 | 45～70 | 0.03～0.05 | 45～70 | 0.04～0.07 |
| 1.5 | 20～35 | 0.015～0.035 | 20～35 | 0.015～0.035 | 20～35 | 0.025～0.045 | 15～30 | 0.01～0.025 | 15～30 | 0.003～0.008 | 15～30 | 0.01～0.03 | 60～120 | 0.03～0.05 | 60～120 | 0.03～0.05 | 60～120 | 0.05～0.09 | 45～70 | 0.03～0.05 | 45～70 | 0.03～0.05 | 45～70 | 0.04～0.07 |
| 2 | 20～35 | 0.015～0.035 | 20～35 | 0.015～0.035 | 20～35 | 0.025～0.045 | 15～30 | 0.01～0.025 | 15～30 | 0.003～0.008 | 15～30 | 0.015～0.04 | 60～120 | 0.03～0.05 | 60～120 | 0.03～0.05 | 60～120 | 0.05～0.09 | 45～70 | 0.03～0.05 | 45～70 | 0.03～0.05 | 45～70 | 0.04～0.07 |
| 3 | 20～35 | 0.015～0.035 | 20～35 | 0.015～0.035 | 20～35 | 0.025～0.045 | 15～30 | 0.01～0.025 | 15～30 | 0.003～0.008 | 15～30 | 0.015～0.04 | 60～120 | 0.03～0.05 | 60～120 | 0.03～0.05 | 60～120 | 0.07～0.12 | 45～70 | 0.03～0.05 | 45～70 | 0.03～0.05 | 45～70 | 0.07～0.1 |
| 4 | 25～40 | 0.02～0.05 | 25～40 | 0.02～0.05 | 25～40 | 0.03～0.06 | 20～35 | 0.01～0.035 | 20～35 | 0.008～0.02 | 20～35 | 0.02～0.05 | 60～120 | 0.03～0.06 | 60～120 | 0.03～0.06 | 60～120 | 0.07～0.12 | 45～80 | 0.03～0.06 | 45～80 | 0.03～0.06 | 45～80 | 0.07～0.1 |
| 5 | 25～40 | 0.02～0.05 | 25～40 | 0.02～0.05 | 25～40 | 0.03～0.06 | 20～35 | 0.01～0.035 | 20～35 | 0.008～0.02 | 20～35 | 0.02～0.05 | 60～120 | 0.03～0.06 | 60～120 | 0.03～0.06 | 60～120 | 0.07～0.14 | 45～80 | 0.03～0.06 | 45～80 | 0.03～0.06 | 45～80 | 0.07～0.12 |
| 6 | 25～40 | 0.03～0.06 | 25～40 | 0.03～0.06 | 25～40 | 0.03～0.06 | 20～35 | 0.01～0.035 | 20～35 | 0.008～0.02 | 20～35 | 0.02～0.05 | 60～120 | 0.03～0.06 | 60～120 | 0.03～0.06 | 60～120 | 0.07～0.14 | 45～80 | 0.03～0.06 | 45～80 | 0.03～0.06 | 45～80 | 0.07～0.12 |
製品ラインナップ
単位 [寸法：mm／価格：円]
Unit [size：mm／Retail Price：JPY]

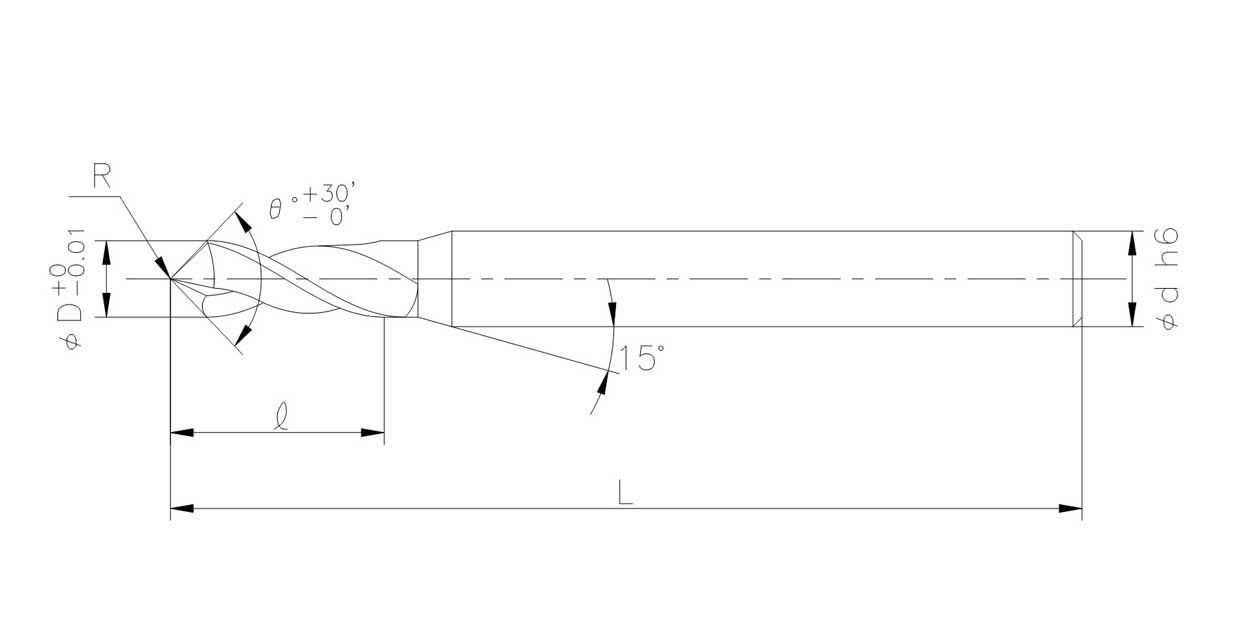

| 品 番 | 刃径 D | 先端角 | 先端 R | 刃長 ℓ | 全長 L | 柄径 d | 標準価格 |
|---|---|---|---|---|---|---|---|
| KSVRA-206010010 | 1 | 60° | R0.1 | 2 | 50 | 4 | 11,400 |
| KSVRA-206010015 | 1 | 60° | R0.15 | 2 | 50 | 4 | 11,400 |
| KSVRA-206010020 | 1 | 60° | R0.2 | 2 | 50 | 4 | 11,400 |
| KSVRA-206010025 | 1 | 60° | R0.25 | 2 | 50 | 4 | 11,400 |
| KSVRA-206010030 | 1 | 60° | R0.3 | 2 | 50 | 4 | 11,400 |
| KSVRA-209010010 | 1 | 90° | R0.1 | 2 | 50 | 4 | 11,400 |
| KSVRA-209010015 | 1 | 90° | R0.15 | 2 | 50 | 4 | 11,400 |
| KSVRA-209010020 | 1 | 90° | R0.2 | 2 | 50 | 4 | 11,400 |
| KSVRA-209010025 | 1 | 90° | R0.25 | 2 | 50 | 4 | 11,400 |
| KSVRA-209010030 | 1 | 90° | R0.3 | 2 | 50 | 4 | 11,400 |
| KSVRA-212010010 | 1 | 120° | R0.1 | 2 | 50 | 4 | 11,400 |
| KSVRA-212010015 | 1 | 120° | R0.15 | 2 | 50 | 4 | 11,400 |
| KSVRA-212010020 | 1 | 120° | R0.2 | 2 | 50 | 4 | 11,400 |
| KSVRA-212010025 | 1 | 120° | R0.25 | 2 | 50 | 4 | 11,400 |
| KSVRA-212010030 | 1 | 120° | R0.3 | 2 | 50 | 4 | 11,400 |
| KSVRA-206015010 | 1.5 | 60° | R0.1 | 3 | 50 | 4 | 11,400 |
| KSVRA-206015015 | 1.5 | 60° | R0.15 | 3 | 50 | 4 | 11,400 |
| KSVRA-206015020 | 1.5 | 60° | R0.2 | 3 | 50 | 4 | 11,400 |
| KSVRA-206015025 | 1.5 | 60° | R0.25 | 3 | 50 | 4 | 11,400 |
| KSVRA-206015030 | 1.5 | 60° | R0.3 | 3 | 50 | 4 | 11,400 |
| KSVRA-209015010 | 1.5 | 90° | R0.1 | 3 | 50 | 4 | 11,400 |
| KSVRA-209015015 | 1.5 | 90° | R0.15 | 3 | 50 | 4 | 11,400 |
| KSVRA-209015020 | 1.5 | 90° | R0.2 | 3 | 50 | 4 | 11,400 |
| KSVRA-209015025 | 1.5 | 90° | R0.25 | 3 | 50 | 4 | 11,400 |
| KSVRA-209015030 | 1.5 | 90° | R0.3 | 3 | 50 | 4 | 11,400 |
| KSVRA-212015010 | 1.5 | 120° | R0.1 | 3 | 50 | 4 | 11,400 |
| KSVRA-212015015 | 1.5 | 120° | R0.15 | 3 | 50 | 4 | 11,400 |
| KSVRA-212015020 | 1.5 | 120° | R0.2 | 3 | 50 | 4 | 11,400 |
| KSVRA-212015025 | 1.5 | 120° | R0.25 | 3 | 50 | 4 | 11,400 |
| KSVRA-212015030 | 1.5 | 120° | R0.3 | 3 | 50 | 4 | 11,400 |
| KSVRA-206020010 | 2 | 60° | R0.1 | 4 | 50 | 4 | 11,400 |
| KSVRA-206020015 | 2 | 60° | R0.15 | 4 | 50 | 4 | 11,400 |
| KSVRA-206020020 | 2 | 60° | R0.2 | 4 | 50 | 4 | 11,400 |
| KSVRA-206020025 | 2 | 60° | R0.25 | 4 | 50 | 4 | 11,400 |
| KSVRA-206020030 | 2 | 60° | R0.3 | 4 | 50 | 4 | 11,400 |
| KSVRA-206020040 | 2 | 60° | R0.4 | 4 | 50 | 4 | 11,400 |
| KSVRA-206020050 | 2 | 60° | R0.5 | 4 | 50 | 4 | 11,400 |
| KSVRA-209020010 | 2 | 90° | R0.1 | 4 | 50 | 4 | 11,400 |
| KSVRA-209020015 | 2 | 90° | R0.15 | 4 | 50 | 4 | 11,400 |
| KSVRA-209020020 | 2 | 90° | R0.2 | 4 | 50 | 4 | 11,400 |
| KSVRA-209020025 | 2 | 90° | R0.25 | 4 | 50 | 4 | 11,400 |
| KSVRA-209020030 | 2 | 90° | R0.3 | 4 | 50 | 4 | 11,400 |
| KSVRA-209020040 | 2 | 90° | R0.4 | 4 | 50 | 4 | 11,400 |
| KSVRA-209020050 | 2 | 90° | R0.5 | 4 | 50 | 4 | 11,400 |
| KSVRA-212020010 | 2 | 120° | R0.1 | 4 | 50 | 4 | 11,400 |
| KSVRA-212020015 | 2 | 120° | R0.15 | 4 | 50 | 4 | 11,400 |
| KSVRA-212020020 | 2 | 120° | R0.2 | 4 | 50 | 4 | 11,400 |
| KSVRA-212020025 | 2 | 120° | R0.25 | 4 | 50 | 4 | 11,400 |
| KSVRA-212020030 | 2 | 120° | R0.3 | 4 | 50 | 4 | 11,400 |
| KSVRA-212020040 | 2 | 120° | R0.4 | 4 | 50 | 4 | 11,400 |
| KSVRA-212020050 | 2 | 120° | R0.5 | 4 | 50 | 4 | 11,400 |
| KSVRA-206030010 | 3 | 60° | R0.1 | 6 | 50 | 6 | 13,200 |
| KSVRA-206030015 | 3 | 60° | R0.15 | 6 | 50 | 6 | 13,200 |
| KSVRA-206030020 | 3 | 60° | R0.2 | 6 | 50 | 6 | 13,200 |
| KSVRA-206030025 | 3 | 60° | R0.25 | 6 | 50 | 6 | 13,200 |
| KSVRA-206030030 | 3 | 60° | R0.3 | 6 | 50 | 6 | 13,200 |
| KSVRA-206030040 | 3 | 60° | R0.4 | 6 | 50 | 6 | 13,200 |
| KSVRA-206030050 | 3 | 60° | R0.5 | 6 | 50 | 6 | 13,200 |
| KSVRA-206030075 | 3 | 60° | R0.75 | 6 | 50 | 6 | 13,200 |
| KSVRA-206030100 | 3 | 60° | R1 | 6 | 50 | 6 | 13,200 |
| KSVRA-209030010 | 3 | 90° | R0.1 | 6 | 50 | 6 | 13,200 |
| KSVRA-209030015 | 3 | 90° | R0.15 | 6 | 50 | 6 | 13,200 |
| KSVRA-209030020 | 3 | 90° | R0.2 | 6 | 50 | 6 | 13,200 |
| KSVRA-209030025 | 3 | 90° | R0.25 | 6 | 50 | 6 | 13,200 |
| KSVRA-209030030 | 3 | 90° | R0.3 | 6 | 50 | 6 | 13,200 |
| KSVRA-209030040 | 3 | 90° | R0.4 | 6 | 50 | 6 | 13,200 |
| KSVRA-209030050 | 3 | 90° | R0.5 | 6 | 50 | 6 | 13,200 |
| KSVRA-209030075 | 3 | 90° | R0.75 | 6 | 50 | 6 | 13,200 |
| KSVRA-209030100 | 3 | 90° | R1 | 6 | 50 | 6 | 13,200 |
| KSVRA-212030010 | 3 | 120° | R0.1 | 6 | 50 | 6 | 13,200 |
| KSVRA-212030015 | 3 | 120° | R0.15 | 6 | 50 | 6 | 13,200 |
| KSVRA-212030020 | 3 | 120° | R0.2 | 6 | 50 | 6 | 13,200 |
| KSVRA-212030025 | 3 | 120° | R0.25 | 6 | 50 | 6 | 13,200 |
| KSVRA-212030030 | 3 | 120° | R0.3 | 6 | 50 | 6 | 13,200 |
| KSVRA-212030040 | 3 | 120° | R0.4 | 6 | 50 | 6 | 13,200 |
| KSVRA-212030050 | 3 | 120° | R0.5 | 6 | 50 | 6 | 13,200 |
| KSVRA-212030075 | 3 | 120° | R0.75 | 6 | 50 | 6 | 13,200 |
| KSVRA-212030100 | 3 | 120° | R1 | 6 | 50 | 6 | 13,200 |
| KSVRA-206060010 | 6 | 60° | R0.1 | 12 | 60 | 6 | 20,200 |
| KSVRA-206060015 | 6 | 60° | R0.15 | 12 | 60 | 6 | 20,200 |
| KSVRA-206060020 | 6 | 60° | R0.2 | 12 | 60 | 6 | 20,200 |
| KSVRA-206060025 | 6 | 60° | R0.25 | 12 | 60 | 6 | 20,200 |
| KSVRA-206060030 | 6 | 60° | R0.3 | 12 | 60 | 6 | 20,200 |
| KSVRA-206060040 | 6 | 60° | R0.4 | 12 | 60 | 6 | 20,200 |
| KSVRA-206060050 | 6 | 60° | R0.5 | 12 | 60 | 6 | 20,200 |
| KSVRA-206060075 | 6 | 60° | R0.75 | 12 | 60 | 6 | 20,200 |
| KSVRA-206060100 | 6 | 60° | R1 | 12 | 60 | 6 | 20,200 |
| KSVRA-206060125 | 6 | 60° | R1.25 | 12 | 60 | 6 | 21,200 |
| KSVRA-206060150 | 6 | 60° | R1.5 | 12 | 60 | 6 | 21,200 |
| KSVRA-206060175 | 6 | 60° | R1.75 | 12 | 60 | 6 | 21,200 |
| KSVRA-206060200 | 6 | 60° | R2 | 12 | 60 | 6 | 21,200 |
| KSVRA-209060010 | 6 | 90° | R0.1 | 12 | 60 | 6 | 18,500 |
| KSVRA-209060015 | 6 | 90° | R0.15 | 12 | 60 | 6 | 18,500 |
| KSVRA-209060020 | 6 | 90° | R0.2 | 12 | 60 | 6 | 18,500 |
| KSVRA-209060025 | 6 | 90° | R0.25 | 12 | 60 | 6 | 18,500 |
| KSVRA-209060030 | 6 | 90° | R0.3 | 12 | 60 | 6 | 18,500 |
| KSVRA-209060040 | 6 | 90° | R0.4 | 12 | 60 | 6 | 18,500 |
| KSVRA-209060050 | 6 | 90° | R0.5 | 12 | 60 | 6 | 18,500 |
| KSVRA-209060075 | 6 | 90° | R0.75 | 12 | 60 | 6 | 18,500 |
| KSVRA-209060100 | 6 | 90° | R1 | 12 | 60 | 6 | 18,500 |
| KSVRA-209060125 | 6 | 90° | R1.25 | 12 | 60 | 6 | 19,600 |
| KSVRA-209060150 | 6 | 90° | R1.5 | 12 | 60 | 6 | 19,600 |
| KSVRA-209060175 | 6 | 90° | R1.75 | 12 | 60 | 6 | 19,600 |
| KSVRA-209060200 | 6 | 90° | R2 | 12 | 60 | 6 | 19,600 |
| KSVRA-212060010 | 6 | 120° | R0.1 | 12 | 60 | 6 | 18,500 |
| KSVRA-212060015 | 6 | 120° | R0.15 | 12 | 60 | 6 | 18,500 |
| KSVRA-212060020 | 6 | 120° | R0.2 | 12 | 60 | 6 | 18,500 |
| KSVRA-212060025 | 6 | 120° | R0.25 | 12 | 60 | 6 | 18,500 |
| KSVRA-212060030 | 6 | 120° | R0.3 | 12 | 60 | 6 | 18,500 |
| KSVRA-212060040 | 6 | 120° | R0.4 | 12 | 60 | 6 | 18,500 |
| KSVRA-212060050 | 6 | 120° | R0.5 | 12 | 60 | 6 | 18,500 |
| KSVRA-212060075 | 6 | 120° | R0.75 | 12 | 60 | 6 | 18,500 |
| KSVRA-212060100 | 6 | 120° | R1 | 12 | 60 | 6 | 18,500 |
| KSVRA-212060125 | 6 | 120° | R1.25 | 12 | 60 | 6 | 19,600 |
| KSVRA-212060150 | 6 | 120° | R1.5 | 12 | 60 | 6 | 19,600 |
| KSVRA-212060175 | 6 | 120° | R1.75 | 12 | 60 | 6 | 19,600 |
| KSVRA-212060200 | 6 | 120° | R2 | 12 | 60 | 6 | 19,600 |
