KSC-2

超硬 2枚刃コーナーC面付エンドミル

Previous

Next

コーナーC面付のエンドミル

Endmill with corner C

C面を幅広くラインナップ

Line-upped various C

切削条件参考

被削材	炭素鋼・一般構造用鋼 S55C・SS材		合金鋼・工具鋼 SCM・SKT・SKS・SKD		プリハードン鋼 HPM-1・NAK55・SKT
刃　径 mm	回転数 min-1	送り速度㎜/min	回転数 min-1	送り速度㎜/min	回転数 min-1	送り速度㎜/min
1	16,000	70	12,700	65	9,500	35
1.5	10,500	70	8,500	65	6,300	35
2	8,000	95	6,300	75	4,700	35
2.5	6,300	105	5,100	85	3,800	35
3	5,300	120	4,200	90	3,200	35
4	4,000	120	3,200	90	2,300	40
6	2,600	120	2,100	90	1,600	40
8	1,950	120	1,600	90	1,200	40
10	1,600	120	1,300	90	1,000	40
12	1,300	120	1,100	90	800	40

製品ラインナップ

単位 [寸法：mm／価格：円]

Unit [size：mm／Retail Price：JPY]

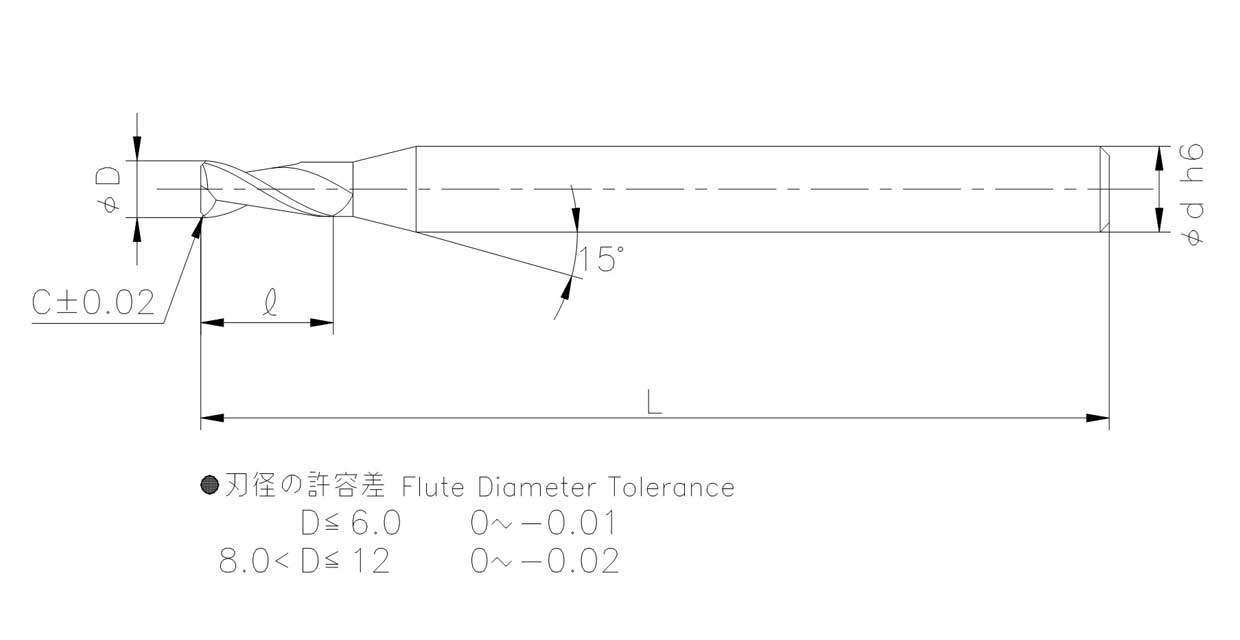

品　番	刃径 D	コーナー C	刃長 ℓ	全長 L	柄径 d	標準価格
KSC-210010C	1	0.1	3	40	4	6,500
KSC-210015C	1	0.15	3	40	4	6,500
KSC-210020C	1	0.2	3	40	4	6,500
KSC-210025C	1	0.25	3	40	4	6,500
KSC-210030C	1	0.3	3	40	4	6,500
KSC-215010C	1.5	0.1	4	40	4	6,500
KSC-215015C	1.5	0.15	4	40	4	6,500
KSC-215020C	1.5	0.2	4	40	4	6,500
KSC-215025C	1.5	0.25	4	40	4	6,500
KSC-215030C	1.5	0.3	4	40	4	6,500
KSC-220010C	2	0.1	6	40	4	6,500
KSC-220015C	2	0.15	6	40	4	6,500
KSC-220020C	2	0.2	6	40	4	6,500
KSC-220025C	2	0.25	6	40	4	6,500
KSC-220030C	2	0.3	6	40	4	6,500
KSC-220035C	2	0.35	6	40	4	6,500
KSC-220040C	2	0.4	6	40	4	6,500
KSC-220045C	2	0.45	6	40	4	6,500
KSC-220050C	2	0.5	6	40	4	6,500
KSC-225010C	2.5	0.1	8	40	4	7,000
KSC-225015C	2.5	0.15	8	40	4	7,000
KSC-225020C	2.5	0.2	8	40	4	7,000
KSC-225025C	2.5	0.25	8	40	4	7,000
KSC-225030C	2.5	0.3	8	40	4	7,000
KSC-225035C	2.5	0.35	8	40	4	7,000
KSC-225040C	2.5	0.4	8	40	4	7,000
KSC-225045C	2.5	0.45	8	40	4	7,000
KSC-225050C	2.5	0.5	8	40	4	7,000
KSC-230010C	3	0.1	8	45	6	7,800
KSC-230015C	3	0.15	8	45	6	7,800
KSC-230020C	3	0.2	8	45	6	7,800
KSC-230025C	3	0.25	8	45	6	7,800
KSC-230030C	3	0.3	8	45	6	7,800
KSC-230035C	3	0.35	8	45	6	7,800
KSC-230040C	3	0.4	8	45	6	7,800
KSC-230045C	3	0.45	8	45	6	7,800
KSC-230050C	3	0.5	8	45	6	7,800
KSC-230075C	3	0.75	8	45	6	8,500
KSC-230100C	3	1	8	45	6	8,500
KSC-240010C	4	0.1	11	45	6	8,100
KSC-240015C	4	0.15	11	45	6	8,100
KSC-240020C	4	0.2	11	45	6	8,100
KSC-240025C	4	0.25	11	45	6	8,100
KSC-240030C	4	0.3	11	45	6	8,100
KSC-240035C	4	0.35	11	45	6	8,100
KSC-240040C	4	0.4	11	45	6	8,100
KSC-240045C	4	0.45	11	45	6	8,100
KSC-240050C	4	0.5	11	45	6	8,100
KSC-240075C	4	0.75	11	45	6	8,800
KSC-240100C	4	1	11	45	6	8,800
KSC-260010C	6	0.1	13	50	6	8,500
KSC-260015C	6	0.15	13	50	6	8,500
KSC-260020C	6	0.2	13	50	6	8,500
KSC-260025C	6	0.25	13	50	6	8,500
KSC-260030C	6	0.3	13	50	6	8,500
KSC-260035C	6	0.35	13	50	6	8,500
KSC-260040C	6	0.4	13	50	6	8,500
KSC-260045C	6	0.45	13	50	6	8,500
KSC-260050C	6	0.5	13	50	6	8,500
KSC-260075C	6	0.75	13	50	6	9,200
KSC-260100C	6	1	13	50	6	9,200
KSC-260125C	6	1.25	13	50	6	9,200
KSC-260150C	6	1.5	13	50	6	9,200
KSC-260175C	6	1.75	13	50	6	10,100
KSC-260200C	6	2	13	50	6	10,100
KSC-280020C	8	0.2	20	60	8	13,500
KSC-280030C	8	0.3	20	60	8	13,500
KSC-280050C	8	0.5	20	60	8	13,500
KSC-280075C	8	0.75	20	60	8	14,500
KSC-280100C	8	1	20	60	8	14,500
KSC-280125C	8	1.25	20	60	8	14,500
KSC-280150C	8	1.5	20	60	8	14,500
KSC-280175C	8	1.75	20	60	8	15,500
KSC-280200C	8	2	20	60	8	15,500
KSC-280250C	8	2.5	20	60	8	15,500
KSC-280300C	8	3	20	60	8	15,500
KSC-2100020C	10	0.2	22	70	10	16,000
KSC-2100030C	10	0.3	22	70	10	16,000
KSC-2100050C	10	0.5	22	70	10	16,000
KSC-2100075C	10	0.75	22	70	10	17,400
KSC-2100100C	10	1	22	70	10	17,400
KSC-2100125C	10	1.25	22	70	10	17,400
KSC-2100150C	10	1.5	22	70	10	17,400
KSC-2100175C	10	1.75	22	70	10	18,700
KSC-2100200C	10	2	22	70	10	18,700
KSC-2100250C	10	2.5	22	70	10	18,700
KSC-2100300C	10	3	22	70	10	18,700
KSC-2120020C	12	0.2	26	75	12	22,700
KSC-2120030C	12	0.3	26	75	12	22,700
KSC-2120050C	12	0.5	26	75	12	22,700
KSC-2120075C	12	0.75	26	75	12	24,000
KSC-2120100C	12	1	26	75	12	24,000
KSC-2120125C	12	1.25	26	75	12	24,000
KSC-2120150C	12	1.5	26	75	12	24,000
KSC-2120175C	12	1.75	26	75	12	25,400
KSC-2120200C	12	2	26	75	12	25,400
KSC-2120250C	12	2.5	26	75	12	25,400
KSC-2120300C	12	3	26	75	12	25,400
KSC-2120400C	12	4	26	75	12	26,000
KSC-2120500C	12	5	26	75	12	26,000
