Made-to-order
Special Tools
Made-to-order
We also deliver to customers tools of sizes, materials, shapes, etc. not listed as the standard tools in our catalog, even in small lot sizes and with short delivery times.
We have established a production line for special tools to swiftly meet all customer needs.
Utilizing our accumulated manufacturing know-how, we design non-standard tools with special shapes required by our customers and provide quick responses from quotation to manufacturing and delivery.
Please feel free to contact us.
PCD Tools
Square Endmill - Straight and spiral flutes
| Flute Diameter | Flute Length | Shank Diameter | Total Length | Taper | With chamfering flutes | No. of flutes |
|---|---|---|---|---|---|---|
| φ0.2~φ6.0 | As per specifications | φ3,φ4,φ6 | 30㎜~100㎜ | ○ | ○ | 1~4 |
Radius Endmill - Straight and spiral flutes
| Flute Diameter | Flute Length | Shank Diameter | Total Length | Taper | With chamfering flutes | No. of flutes |
|---|---|---|---|---|---|---|
| φ0.5~φ6.0 | 仕様による | φ3,φ4,φ6 | 30㎜~100㎜ | ○ | ○ | 1~4 |
Ball Endmill - Straight and spiral flutes
| R | Flute Length | Shank Diameter | Total Length | Taper | With chamfering flutes | No. of flutes |
|---|---|---|---|---|---|---|
| R0.1~R3.0 | As per specifications | φ3,φ4,φ6 | 30㎜~100㎜ | ○ | ○ | 1~3 |
Drill - spiral flutes
| Flute Diameter | Flute Length | Shank Diameter | Total Length | Taper | With chamfering flutes | No. of flutes |
|---|---|---|---|---|---|---|
| φ0.3~φ3.0 | As per specifications | φ3,φ4,φ6 | 30㎜~100㎜ | ○ | ○ | 1~2 |
Tip Polygonal Angle Drill - spiral flutes
| Flute Diameter | Flute Length | Shank Diameter | Total Length | Taper | With chamfering flutes | No. of flutes |
|---|---|---|---|---|---|---|
| φ0.3~φ3.0 | As per specifications | φ3,φ4,φ6 | 30㎜~100㎜ | - | - | 2 |
Production lead time: approximately 55 to 65 days.
We will inform the delivery time details at the time of quotation.
Minimum order quantity: 2
cBN Tools
Radius Endmill - Straight and spiral flutes
| Flute Diameter | Flute Length | Shank Diameter | Total Length | Taper | With chamfering flutes | No. of flutes |
|---|---|---|---|---|---|---|
| φ0.3~φ6.0 | As per specifications | φ3,φ4,φ6 | 30㎜~100㎜ | ○ | ○ | 1~4 |
Ball Endmill - Straight and spiral flutes
| R | Flute Length | Shank Diameter | Total Length | Taper | With chamfering flutes | No. of flutes |
|---|---|---|---|---|---|---|
| R0.1~R3.0 | As per specifications | φ3,φ4,φ6 | 30㎜~100㎜ | 〇 | 〇 | 1~3 |
V type Endmill - Straight edge/tip angle: 30° to 90°
| Flute Diameter | Flute Length | Shank Diameter | Total Length | Taper | With chamfering flutes | No. of flutes |
|---|---|---|---|---|---|---|
| φ0.05~ | As per specifications | φ3,φ4,φ6 | 30㎜~100㎜ | - | ○ | 1~4 |
Reamer - spiral flutes
| Flute Diameter | Flute Length | Shank Diameter | Total Length | Taper | With chamfering flutes | No. of flutes |
|---|---|---|---|---|---|---|
| φ0.5~φ6.03 | As per specifications | φ3,φ4,φ6 | 30㎜~100㎜ | ○ | ○ | 1~6 |
Cutter - Straight edge/Chamfer Angle: W60° to 90°
| Flute Diameter | Flute Length | Shank Diameter | Total Length | Taper | With chamfering flutes | No. of flutes |
|---|---|---|---|---|---|---|
| φ0.5~φ6.0 | As per specifications | φ3,φ4,φ6 | 30㎜~100㎜ | - | ○ | 1~4 |
Production lead time: approximately 55 to 65 days.
We will inform the delivery time details at the time of quotation.
Minimum order quantity: 2
CARBIDE Tools
| Edge Diameter | Shank Diameter | Total Length | Taper | With chamfering flutes | Corner R | No. of flutes |
|---|---|---|---|---|---|---|
| φ0.3~ | φ3.0~φ16 | ~200㎜ | - | ○ | - | 2~3 |
| Edge Diameter | Shank Diameter | Total Length | Taper | With chamfering flutes | Corner R | No. of flutes |
|---|---|---|---|---|---|---|
| φ0.5~ | φ3.0~φ16 | ~200㎜ | - | ○ | - | 2 |
| Edge Diameter | Shank Diameter | Total Length | Taper | With chamfering flutes | Corner R | No. of flutes |
|---|---|---|---|---|---|---|
| φ0.3~ | φ3.0~φ16 | ~200㎜ | ○ | ○ | ○ | 1 |
| Edge Diameter | Shank Diameter | Total Length | Taper | With chamfering flutes | Corner R | No. of flutes |
|---|---|---|---|---|---|---|
| - | φ3.0~φ16 | ~200㎜ | ○ | - | ○ | 1 |
| Edge Diameter | Shank Diameter | Total Length | Taper | With chamfering flutes | Corner R | No. of flutes |
|---|---|---|---|---|---|---|
| φ0.1~ | φ3.0~φ16 | ~200㎜ | ○ | - | ○ | 2~4 |
| Edge Diameter | Shank Diameter | Total Length | Taper | With chamfering flutes | Corner R | No. of flutes |
|---|---|---|---|---|---|---|
| φ0.5~ | φ3.0~φ16 | ~200㎜ | ○ | ○ | ○ | 2~6 |
| Edge Diameter | Shank Diameter | Total Length | Taper | With chamfering flutes | Corner R | No. of flutes |
|---|---|---|---|---|---|---|
| φ0.5~ | φ3.0~φ16 | ~200㎜ | - | - | ○ | 2~10 |
| Edge Diameter | Shank Diameter | Total Length | Taper | With chamfering flutes | Corner R | No. of flutes |
|---|---|---|---|---|---|---|
| φ1.0~ | φ3.0~φ16 | ~200㎜ | - | - | - | 2 |
Production lead time: approximately 20 to 30 days
We will inform the delivery time details at the time of quotation.
Coating: TiN, TiCN, TiAlN, TiSiN, CrN, DIA, DLC, etc.
Minimum order quantity: 2 (5 for spiral end mills)
Requesting an estimate
Please fax a work drawing or tool drawing (hand drawing is acceptable). An estimate will be sent to you the same day or the next day. Kyowa can propose tools that suit the work material and/or other environment conditions.
FAX. +81-183-62-2030

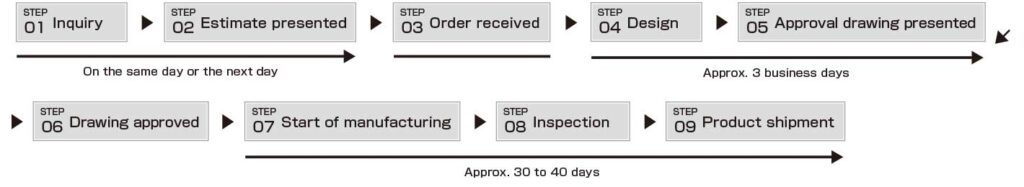

Flow of order
Precautions for use
- Handle products with sufficient care as they have a sharp cutting edge.
- Tools and work materials are very hot right after they are used. Do not touch them directly with your hands as there is a risk of burns.
- Protect your tools from being broken by scattering of cuttings or improper use of equipment. Specifically, set the machinery covers in place and wear protection such as safety goggles.
- Never attempt to touch the workpiece with bare hands. The burrs on the workpiece can cause an injury.
