YSPKC-LN

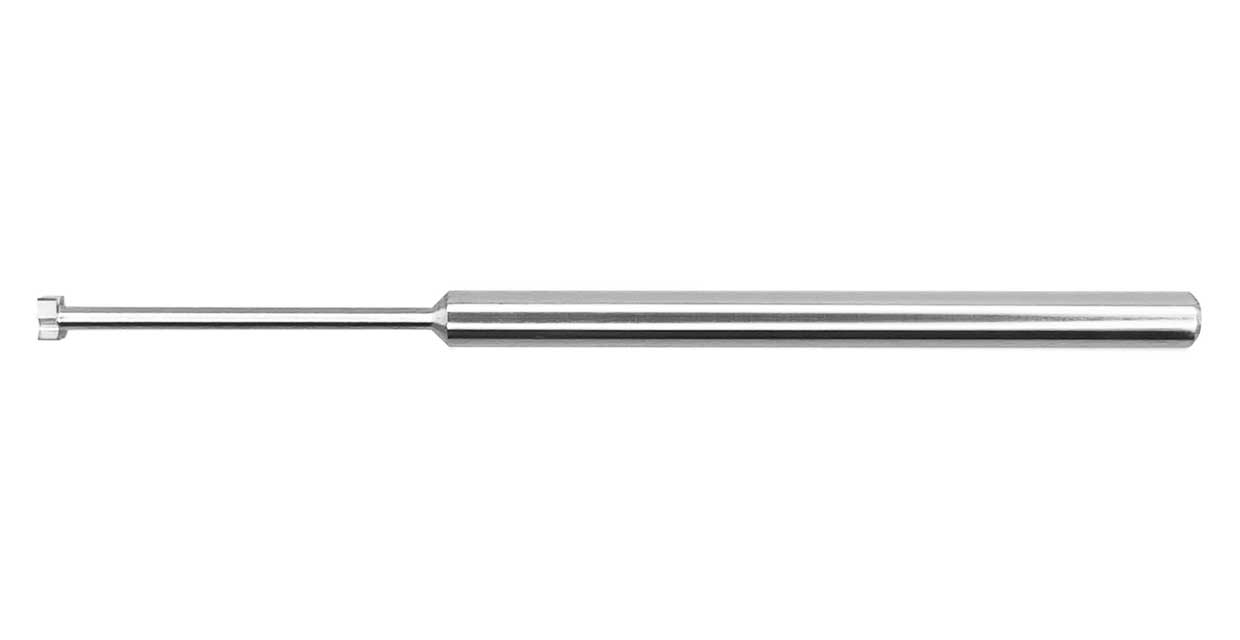

Resin Processing Tungsten Carbide long-Neck Key Seed Cutter
Previous
Next
Referential Cutting Conditions
| Workpiece | Carbon Steel / General Structural Steel S55C / SS | Alloy Steel / Tool Steel SCM / SKT / SKS / SKD | Stainless Steel SUS303,SUS304,SUS416 | Aluminum Alloy ADC・AC |
||||
|---|---|---|---|---|---|---|---|---|
| Flute Diameter mm | Revolution min-1 | Feed ㎜/min | Revolution min-1 | Feed ㎜/min | Revolution min-1 | Feed ㎜/min | Revolution min-1 | Feed ㎜/min |
| 0.3~0.49 | 9~15 | 0.003 | 8~14 | 0.002 | 5~8 | 0.0005~0.001 | 10~30 | 0.01~0.04 |
| 0.5~0.99 | 15~30 | 0.008~0.017 | 12~25 | 0.005~0.013 | 9~15 | 0.001~0.003 | 15~40 | 0.02~0.06 |
| 1.0~1.99 | 20~45 | 0.02~0.04 | 15~35 | 0.01~0.018 | 10~25 | 0.005~0.015 | 20~50 | 0.04~0.1 |
| 2.0~3.0 | 25~55 | 0.05~0.07 | 17~28 | 0.02~0.035 | 13~30 | 0.02~0.03 | 25~60 | 0.08~0.2 |
Product lineup
Unit [size：mm／Retail Price：JPY]

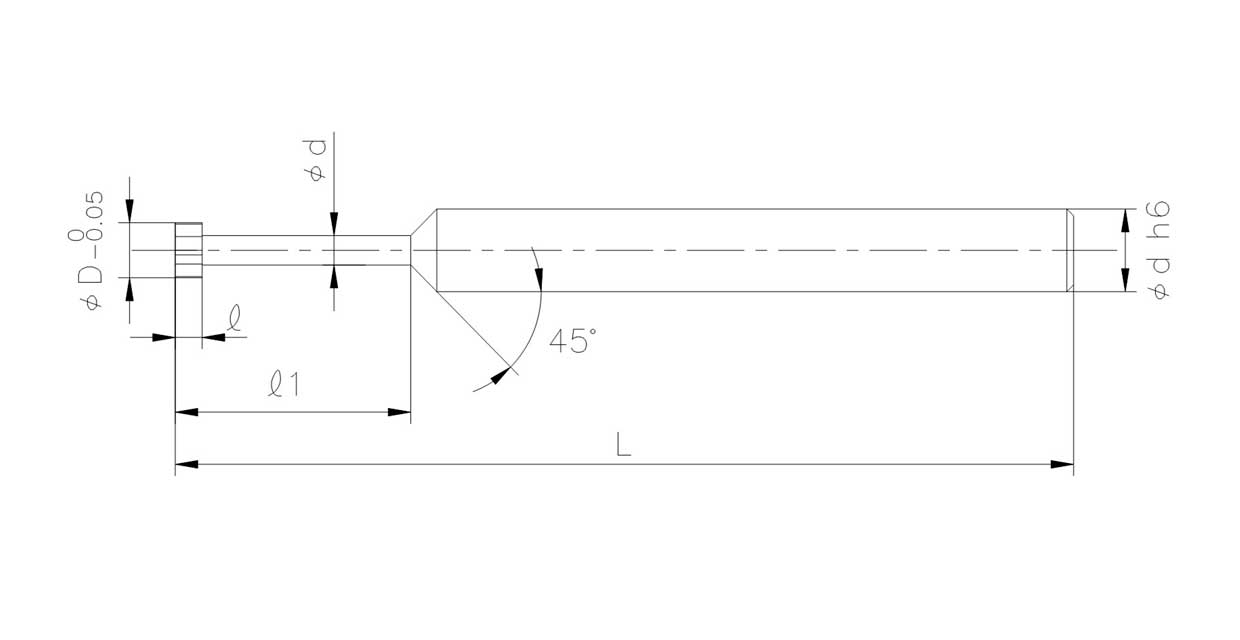

| Code No. | Flute Diameter φD | Flute Length ℓ | Neck Diameter φd1 | Neck Length ℓ1 | Total Length L | Shank Diameter φｄ |
|---|---|---|---|---|---|---|
| YSPKC-LN-0102 | 1 | 0.2 | 0.55 | 10 | 50 | 3 |
| YSPKC-LN-0103 | 0.3 | 0.55 | 10 | 50 | 3 | |
| YSPKC-LN-0104 | 0.4 | 0.55 | 10 | 50 | 3 | |
| YSPKC-LN-0105 | 0.5 | 0.55 | 10 | 50 | 3 | |
| YSPKC-LN-0110 | 1 | 0.55 | 10 | 50 | 3 | |
| YSPKC-LN-0202 | 2 | 0.2 | 1 | 20 | 60 | 3 |
| YSPKC-LN-0203 | 0.3 | 1 | 20 | 60 | 3 | |
| YSPKC-LN-0204 | 0.4 | 1 | 20 | 60 | 3 | |
| YSPKC-LN-0205 | 0.5 | 1 | 20 | 60 | 3 | |
| YSPKC-LN-0210 | 1 | 1 | 20 | 60 | 3 | |
| YSPKC-LN-0303 | 3 | 0.3 | 1.2 | 20 | 60 | 3 |
| YSPKC-LN-0304 | 0.4 | 1.2 | 20 | 60 | 3 | |
| YSPKC-LN-0305 | 0.5 | 1.2 | 20 | 60 | 3 | |
| YSPKC-LN-0310 | 1 | 1.2 | 20 | 60 | 3 | |
| YSPKC-LN-0315 | 1.5 | 1.2 | 20 | 60 | 3 | |
| YSPKC-LN-0320 | 2 | 1.2 | 20 | 60 | 3 | |
| YSPKC-LN-0403 | 4 | 0.3 | 1.5 | 25 | 60 | 4 |
| YSPKC-LN-0404 | 0.4 | 1.5 | 25 | 60 | 4 | |
| YSPKC-LN-0405 | 0.5 | 1.5 | 25 | 60 | 4 | |
| YSPKC-LN-0410 | 1 | 1.5 | 25 | 60 | 4 | |
| YSPKC-LN-0415 | 1.5 | 1.5 | 25 | 60 | 4 | |
| YSPKC-LN-0420 | 2 | 1.5 | 25 | 60 | 4 | |
| YSPKC-LN-0503 | 5 | 0.3 | 2 | 30 | 70 | 6 |
| YSPKC-LN-0504 | 0.4 | 2 | 30 | 70 | 6 | |
| YSPKC-LN-0505 | 0.5 | 2 | 30 | 70 | 6 | |
| YSPKC-LN-0510 | 1 | 2 | 30 | 70 | 6 | |
| YSPKC-LN-0515 | 1.5 | 2 | 30 | 70 | 6 | |
| YSPKC-LN-0520 | 2 | 2 | 30 | 70 | 6 | |
| YSPKC-LN-0603 | 6 | 0.3 | 2.4 | 30 | 70 | 6 |
| YSPKC-LN-0604 | 0.4 | 2.4 | 30 | 70 | 6 | |
| YSPKC-LN-0605 | 0.5 | 2.4 | 30 | 70 | 6 | |
| YSPKC-LN-0610 | 1 | 2.4 | 30 | 70 | 6 | |
| YSPKC-LN-0615 | 1.5 | 2.4 | 30 | 70 | 6 | |
| YSPKC-LN-0620 | 2 | 2.4 | 30 | 70 | 6 | |
| YSPKC-LN-0630 | 3 | 2.4 | 30 | 70 | 6 | |
| YSPKC-LN-0803 | 8 | 0.3 | 3 | 40 | 80 | 8 |
| YSPKC-LN-0804 | 0.4 | 3 | 40 | 80 | 8 | |
| YSPKC-LN-0805 | 0.5 | 3 | 40 | 80 | 8 | |
| YSPKC-LN-0810 | 1 | 3 | 40 | 80 | 8 | |
| YSPKC-LN-0815 | 1.5 | 3 | 40 | 80 | 8 | |
| YSPKC-LN-0820 | 2 | 3 | 40 | 80 | 8 | |
| YSPKC-LN-0830 | 3 | 3 | 40 | 80 | 8 | |
| YSPKC-LN-0840 | 4 | 3 | 40 | 80 | 8 | |
| YSPKC-LN-1003 | 10 | 0.3 | 3.5 | 50 | 100 | 10 |
| YSPKC-LN-1004 | 0.4 | 3.5 | 50 | 100 | 10 | |
| YSPKC-LN-1005 | 0.5 | 3.5 | 50 | 100 | 10 | |
| YSPKC-LN-1010 | 1 | 3.5 | 50 | 100 | 10 | |
| YSPKC-LN-1015 | 1.5 | 3.5 | 50 | 100 | 10 | |
| YSPKC-LN-1020 | 2 | 3.5 | 50 | 100 | 10 | |
| YSPKC-LN-1030 | 3 | 3.5 | 50 | 100 | 10 | |
| YSPKC-LN-1040 | 4 | 3.5 | 50 | 100 | 10 | |
| YSPKC-LN-1050 | 5 | 3.5 | 50 | 100 | 10 | |
| YSPKC-LN-1203 | 12 | 0.3 | 4 | 50 | 100 | 12 |
| YSPKC-LN-1204 | 0.4 | 4 | 50 | 100 | 12 | |
| YSPKC-LN-1205 | 0.5 | 4 | 50 | 100 | 12 | |
| YSPKC-LN-1210 | 1 | 4 | 50 | 100 | 12 | |
| YSPKC-LN-1215 | 1.5 | 4 | 50 | 100 | 12 | |
| YSPKC-LN-1220 | 2 | 4 | 50 | 100 | 12 | |
| YSPKC-LN-1230 | 3 | 4 | 50 | 100 | 12 | |
| YSPKC-LN-1240 | 4 | 4 | 50 | 100 | 12 | |
| YSPKC-LN-1250 | 5 | 4 | 50 | 100 | 12 | |
| YSPKC-LN-1260 | 6 | 4 | 50 | 100 | 12 |
