YSEDLL

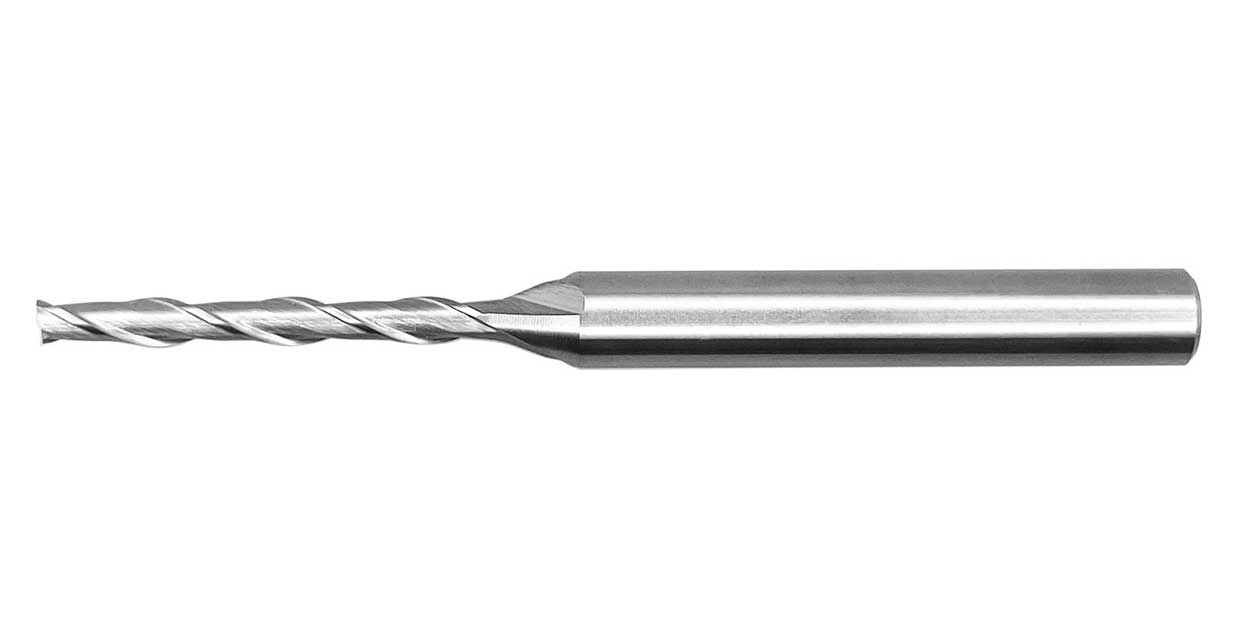

Tungsten Carbide 2-flute Long Endmill
Previous
Next
Referential Cutting Conditions
| Workpiece | Carbon Steel / General Structural Steel S55C / SS | Alloy Steel / Tool Steel SCM / SKT / SKS / SKD | Stainless Steel SUS303,SUS304,SUS416 | Aluminum Alloy ADC・AC |
||||
|---|---|---|---|---|---|---|---|---|
| Flute Diameter mm | Revolution min-1 | Feed ㎜/min | Revolution min-1 | Feed ㎜/min | Revolution min-1 | Feed ㎜/min | Revolution min-1 | Feed ㎜/min |
| 0.3~0.49 | 9~15 | 0.003 | 8~14 | 0.002 | 5~8 | 0.0005~0.001 | 10~30 | 0.01~0.04 |
| 0.5~0.99 | 15~30 | 0.008~0.017 | 12~25 | 0.005~0.013 | 9~15 | 0.001~0.003 | 15~40 | 0.02~0.06 |
| 1.0~1.99 | 20~45 | 0.02~0.04 | 15~35 | 0.01~0.018 | 10~25 | 0.005~0.015 | 20~50 | 0.04~0.1 |
| 2.0~3.0 | 25~55 | 0.05~0.07 | 17~28 | 0.02~0.035 | 13~30 | 0.02~0.03 | 25~60 | 0.08~0.2 |
Product lineup
Unit [size：mm／Retail Price：JPY]

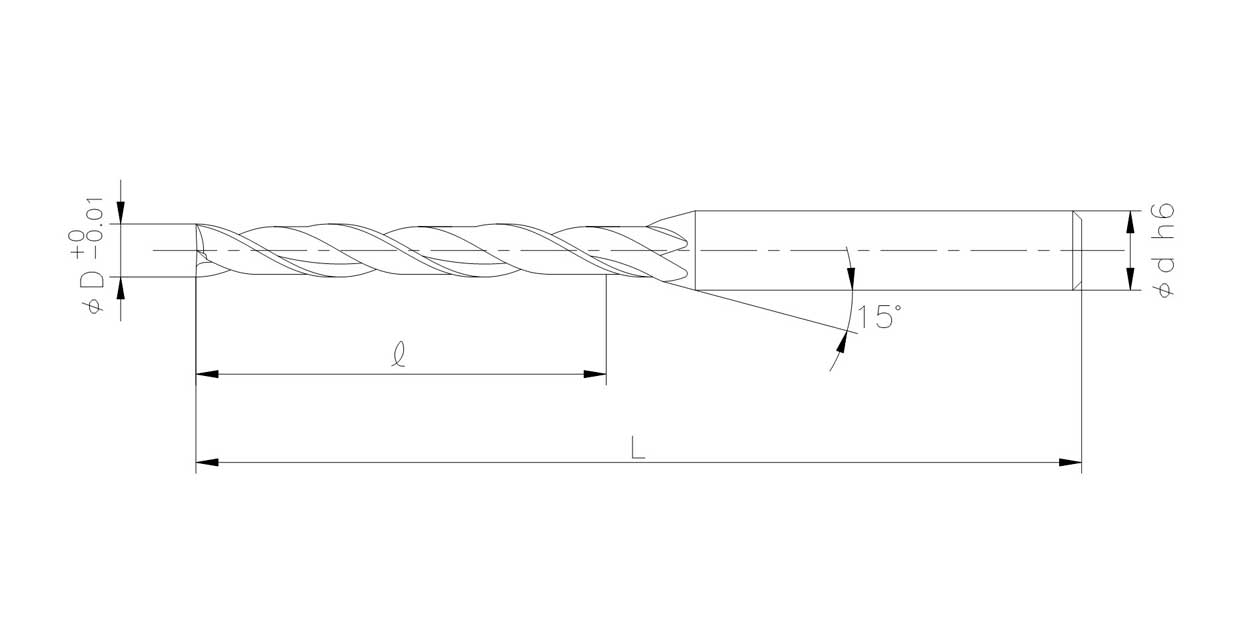

| Code No. | Flute Diameter φD | Flute Length ℓ | Total Length L | Shank Diameter φｄ |
|---|---|---|---|---|
| YSEDLL-30150 | 3 | 15 | 60 | 6 |
| YSEDLL-30200 | 20 | 60 | 6 | |
| YSEDLL-30250 | 25 | 70 | 6 | |
| YSEDLL-30300 | 30 | 70 | 6 | |
| YSEDLL-40200 | 4 | 20 | 70 | 6 |
| YSEDLL-40250 | 25 | 70 | 6 | |
| YSEDLL-40300 | 30 | 70 | 6 | |
| YSEDLL-40350 | 35 | 80 | 6 | |
| YSEDLL-40400 | 40 | 80 | 6 | |
| YSEDLL-50300 | 5 | 30 | 70 | 6 |
| YSEDLL-50350 | 35 | 80 | 6 | |
| YSEDLL-50400 | 40 | 80 | 6 | |
| YSEDLL-50450 | 45 | 90 | 6 | |
| YSEDLL-50500 | 50 | 90 | 6 | |
| YSEDLL-60300 | 6 | 30 | 80 | 6 |
| YSEDLL-60350 | 35 | 80 | 6 | |
| YSEDLL-60400 | 40 | 80 | 6 | |
| YSEDLL-60450 | 45 | 90 | 6 | |
| YSEDLL-60500 | 50 | 90 | 6 | |
| YSEDLL-60600 | 60 | 100 | 6 |
