KHR-DLC

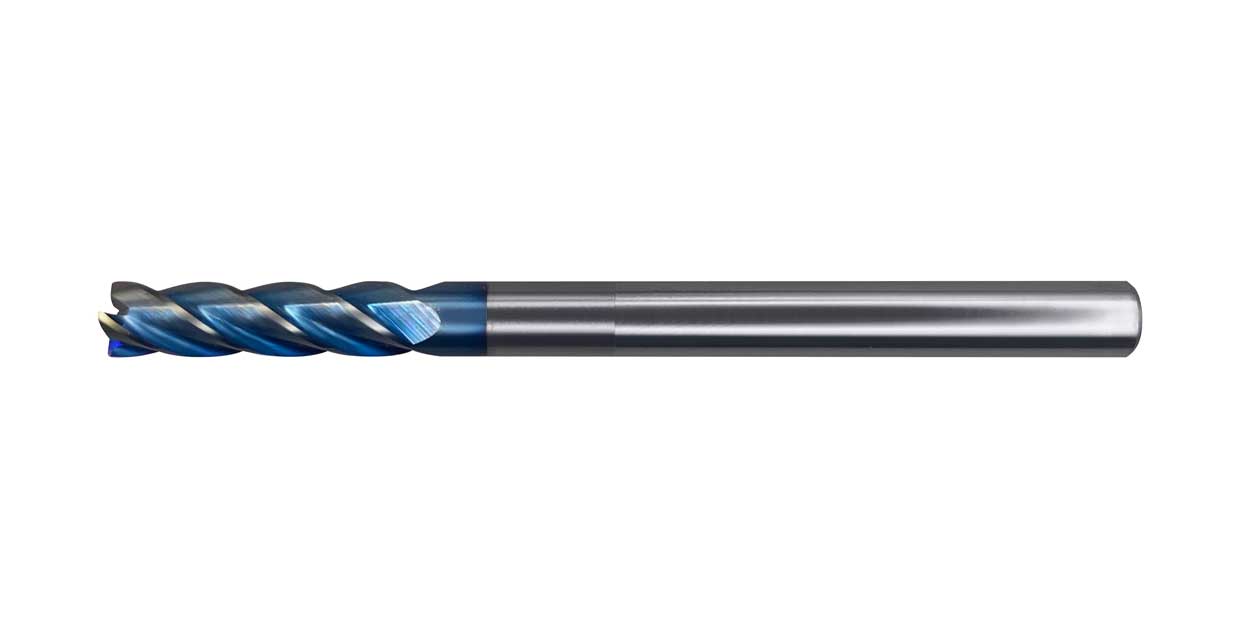

Tungsten Carbide Reamer with Bottom Flute / DLC Coating
Referential Cutting Conditions
| Workpiece | Cutting Speed m/min | Feed mm/rev | Reamer Stock Removal mm | Recommendable Cutting Oil |
|---|---|---|---|---|
| Carbon Tool Steel | 10~15 | 0.1~0.15 | 0.1 | Non-Water Soluable |
| Cast Iron | 15~25 | 0.1~0.15 | 0.1~0.2 | Non-Water Soluable |
| Alloy Steel | 10~20 | 0.1~0.15 | 0.1 | Non-Water Soluable |
| Pre-Harden Steel | 6~10 | 0.05 or less | 0.05~0.1 | Non-Water Soluable |
| Stainless Steel | 10~15 | 0.05~0.1 | 0.05~0.1 | Non-Water Soluable |
| Copper and Copper Alloy | 25~30 | 0.05~0.1 | 0.1 | Non-Water Soluable |
| Titanium Alloy | 5~10 | 0.05 or less | 0.05~0.1 | Water Soluable |
| Aluminum Alloy | 20~40 | 0.05 | 0.1~0.2 | Non-Water Soluable |
| Resin | 15~20 | 0.1~0.15 | 0.1~0.2 | Non-Water Soluable |
| Remarks | * Adjust Cutting Speed、Feed and Finishing Stock Removal according to Using Machine |
|||
Product lineup

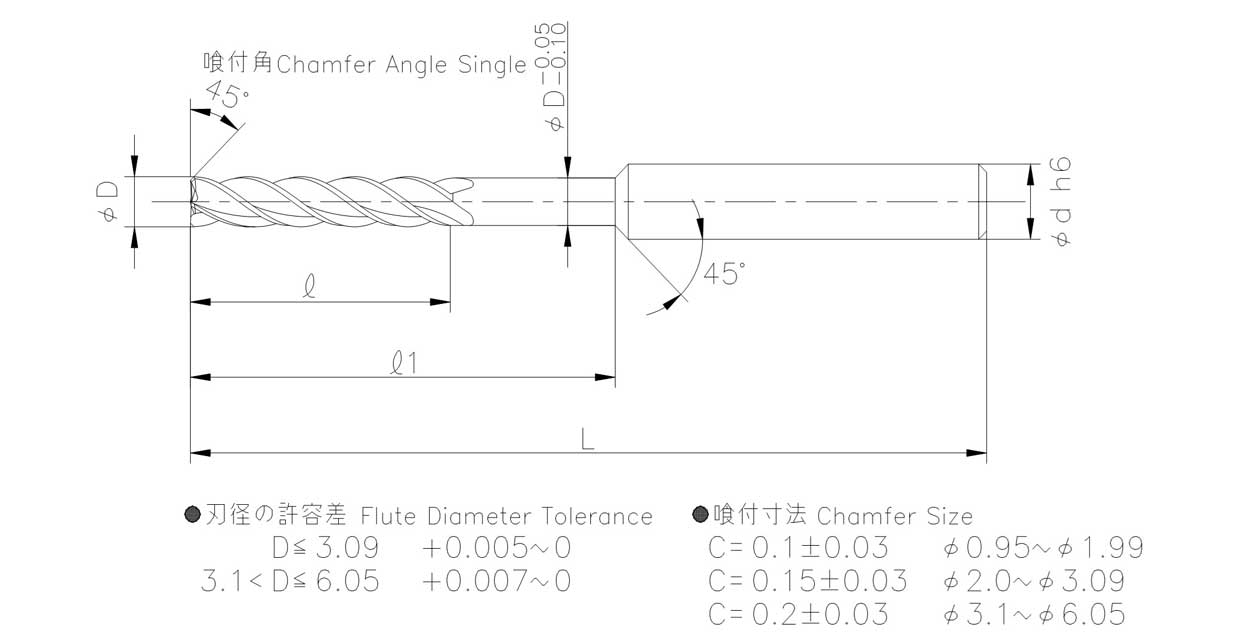

Unit [size:mm]
| Code № | Flute Diameter (D) | Flute Length (ℓ) | Effective Length (ℓ1) | Total Length (L) | Shank Diameter (d) |
|---|---|---|---|---|---|
| KHR-DLC-4095 | 0.95 | 5 | 12 | 50 | 3 |
| KHR-DLC-4096 | 0.96 | 5 | 12 | 50 | 3 |
| KHR-DLC-4097 | 0.97 | 5 | 12 | 50 | 3 |
| KHR-DLC-4098 | 0.98 | 5 | 12 | 50 | 3 |
| KHR-DLC-4099 | 0.99 | 5 | 12 | 50 | 3 |
| KHR-DLC-4100 | 1 | 6 | 15 | 60 | 3 |
| KHR-DLC-41005 | 1.005 | 6 | 15 | 60 | 3 |
| KHR-DLC-4101 | 1.01 | 6 | 15 | 60 | 3 |
| KHR-DLC-4102 | 1.02 | 6 | 15 | 60 | 3 |
| KHR-DLC-4103 | 1.03 | 6 | 15 | 60 | 3 |
| KHR-DLC-4104 | 1.04 | 6 | 15 | 60 | 3 |
| KHR-DLC-4105 | 1.05 | 6 | 15 | 60 | 3 |
| KHR-DLC-4110 | 1.1 | 6 | 15 | 60 | 3 |
| KHR-DLC-4120 | 1.2 | 6 | 15 | 60 | 3 |
| KHR-DLC-4130 | 1.3 | 6 | 15 | 60 | 3 |
| KHR-DLC-4140 | 1.4 | 6 | 15 | 60 | 3 |
| KHR-DLC-4150 | 1.5 | 8 | 20 | 60 | 3 |
| KHR-DLC-4160 | 1.6 | 8 | 20 | 60 | 3 |
| KHR-DLC-4170 | 1.7 | 8 | 20 | 60 | 3 |
| KHR-DLC-4180 | 1.8 | 8 | 20 | 60 | 3 |
| KHR-DLC-4190 | 1.9 | 8 | 20 | 60 | 3 |
| KHR-DLC-4195 | 1.95 | 10 | 24 | 60 | 3 |
| KHR-DLC-4196 | 1.96 | 10 | 24 | 60 | 3 |
| KHR-DLC-4197 | 1.97 | 10 | 24 | 60 | 3 |
| KHR-DLC-4198 | 1.98 | 10 | 24 | 60 | 3 |
| KHR-DLC-4199 | 1.99 | 10 | 24 | 60 | 3 |
| KHR-DLC-4200 | 2 | 10 | 24 | 60 | 3 |
| KHR-DLC-42005 | 2.005 | 10 | 24 | 60 | 3 |
| KHR-DLC-4201 | 2.01 | 10 | 24 | 60 | 3 |
| KHR-DLC-4202 | 2.02 | 10 | 24 | 60 | 3 |
| KHR-DLC-4203 | 2.03 | 10 | 24 | 60 | 3 |
| KHR-DLC-4204 | 2.04 | 10 | 24 | 60 | 3 |
| KHR-DLC-4205 | 2.05 | 10 | 24 | 60 | 3 |
| KHR-DLC-4210 | 2.1 | 10 | 24 | 60 | 3 |
| KHR-DLC-4220 | 2.2 | 10 | 24 | 60 | 3 |
| KHR-DLC-4230 | 2.3 | 10 | 24 | 60 | 3 |
| KHR-DLC-4240 | 2.4 | 10 | 24 | 60 | 3 |
| KHR-DLC-4250 | 2.5 | 10 | 24 | 60 | 3 |
| KHR-DLC-4260 | 2.6 | 10 | 24 | 60 | 3 |
| KHR-DLC-4270 | 2.7 | 10 | 24 | 60 | 3 |
| KHR-DLC-4280 | 2.8 | 10 | 24 | 60 | 3 |
| KHR-DLC-4290 | 2.9 | 10 | 24 | 60 | 3 |
| KHR-DLC-4295 | 2.95 | 15 | 30 | 60 | 3 |
| KHR-DLC-4296 | 2.96 | 15 | 30 | 60 | 3 |
| KHR-DLC-4297 | 2.97 | 15 | 30 | 60 | 3 |
| KHR-DLC-4298 | 2.98 | 15 | 30 | 60 | 3 |
| KHR-DLC-4299 | 2.99 | 15 | 30 | 60 | 3 |
| KHR-DLC-4300 | 3 | 15 | 30 | 60 | 3 |
| KHR-DLC-43005 | 3.005 | 15 | 30 | 60 | 3 |
| KHR-DLC-4301 | 3.01 | 15 | 30 | 60 | 3 |
| KHR-DLC-4302 | 3.02 | 15 | 30 | 60 | 3 |
| KHR-DLC-4303 | 3.03 | 15 | 30 | 60 | 3 |
| KHR-DLC-4304 | 3.04 | 15 | 30 | 60 | 3 |
| KHR-DLC-4305 | 3.05 | 15 | 30 | 60 | 3 |
| KHR-DLC-4310 | 3.1 | 15 | 30 | 70 | 4 |
| KHR-DLC-4320 | 3.2 | 15 | 30 | 70 | 4 |
| KHR-DLC-4330 | 3.3 | 15 | 30 | 70 | 4 |
| KHR-DLC-4340 | 3.4 | 15 | 30 | 70 | 4 |
| KHR-DLC-4350 | 3.5 | 15 | 30 | 70 | 4 |
| KHR-DLC-4360 | 3.6 | 15 | 30 | 70 | 4 |
| KHR-DLC-4370 | 3.7 | 15 | 30 | 70 | 4 |
| KHR-DLC-4380 | 3.8 | 15 | 30 | 70 | 4 |
| KHR-DLC-4390 | 3.9 | 15 | 30 | 70 | 4 |
| KHR-DLC-4395 | 3.95 | 20 | 35 | 70 | 4 |
| KHR-DLC-4396 | 3.96 | 20 | 35 | 70 | 4 |
| KHR-DLC-4397 | 3.97 | 20 | 35 | 70 | 4 |
| KHR-DLC-4398 | 3.98 | 20 | 35 | 70 | 4 |
| KHR-DLC-4399 | 3.99 | 20 | 35 | 70 | 4 |
| KHR-DLC-4400 | 4 | 20 | 35 | 70 | 4 |
| KHR-DLC-44005 | 4.005 | 20 | 35 | 70 | 4 |
| KHR-DLC-4401 | 4.01 | 20 | 35 | 70 | 4 |
| KHR-DLC-4402 | 4.02 | 20 | 35 | 70 | 4 |
| KHR-DLC-4403 | 4.03 | 20 | 35 | 70 | 4 |
| KHR-DLC-4404 | 4.04 | 20 | 35 | 70 | 4 |
| KHR-DLC-4405 | 4.05 | 20 | 35 | 70 | 4 |
| KHR-DLC-4410 | 4.1 | 20 | 35 | 80 | 6 |
| KHR-DLC-4420 | 4.2 | 20 | 35 | 80 | 6 |
| KHR-DLC-4430 | 4.3 | 20 | 35 | 80 | 6 |
| KHR-DLC-4440 | 4.4 | 20 | 35 | 80 | 6 |
| KHR-DLC-4450 | 4.5 | 20 | 35 | 80 | 6 |
| KHR-DLC-4460 | 4.6 | 20 | 35 | 80 | 6 |
| KHR-DLC-4470 | 4.7 | 20 | 35 | 80 | 6 |
| KHR-DLC-4480 | 4.8 | 20 | 35 | 80 | 6 |
| KHR-DLC-4490 | 4.9 | 20 | 35 | 80 | 6 |
| KHR-DLC-4495 | 4.95 | 24 | 40 | 80 | 6 |
| KHR-DLC-4496 | 4.96 | 24 | 40 | 80 | 6 |
| KHR-DLC-4497 | 4.97 | 24 | 40 | 80 | 6 |
| KHR-DLC-4498 | 4.98 | 24 | 40 | 80 | 6 |
| KHR-DLC-4499 | 4.99 | 24 | 40 | 80 | 6 |
| KHR-DLC-4500 | 5 | 24 | 40 | 80 | 6 |
| KHR-DLC-45005 | 5.005 | 24 | 40 | 80 | 6 |
| KHR-DLC-4501 | 5.01 | 24 | 40 | 80 | 6 |
| KHR-DLC-4502 | 5.02 | 24 | 40 | 80 | 6 |
| KHR-DLC-4503 | 5.03 | 24 | 40 | 80 | 6 |
| KHR-DLC-4504 | 5.04 | 24 | 40 | 80 | 6 |
| KHR-DLC-4505 | 5.05 | 24 | 40 | 80 | 6 |
| KHR-DLC-4510 | 5.1 | 24 | 40 | 80 | 6 |
| KHR-DLC-4520 | 5.2 | 24 | 40 | 80 | 6 |
| KHR-DLC-4530 | 5.3 | 24 | 40 | 80 | 6 |
| KHR-DLC-4540 | 5.4 | 24 | 40 | 80 | 6 |
| KHR-DLC-4550 | 5.5 | 24 | 40 | 80 | 6 |
| KHR-DLC-4560 | 5.6 | 24 | 40 | 80 | 6 |
| KHR-DLC-4570 | 5.7 | 24 | 40 | 80 | 6 |
| KHR-DLC-4580 | 5.8 | 24 | 40 | 80 | 6 |
| KHR-DLC-4590 | 5.9 | 24 | 40 | 80 | 6 |
| KHR-DLC-4595 | 5.95 | 24 | 40 | 80 | 6 |
| KHR-DLC-4596 | 5.96 | 24 | 40 | 80 | 6 |
| KHR-DLC-4597 | 5.97 | 24 | 40 | 80 | 6 |
| KHR-DLC-4598 | 5.98 | 24 | 40 | 80 | 6 |
| KHR-DLC-4599 | 5.99 | 24 | 40 | 80 | 6 |
| KHR-DLC-4600 | 6 | 24 | 40 | 80 | 6 |
| KHR-DLC-46005 | 6.005 | 24 | 40 | 80 | 6 |
| KHR-DLC-4601 | 6.01 | 24 | 40 | 80 | 6 |
| KHR-DLC-4602 | 6.02 | 24 | 40 | 80 | 6 |
| KHR-DLC-4603 | 6.03 | 24 | 40 | 80 | 6 |
| KHR-DLC-4604 | 6.04 | 24 | 40 | 80 | 6 |
| KHR-DLC-4605 | 6.05 | 24 | 40 | 80 | 6 |
