Resin Processing
Processing of acrylic resin

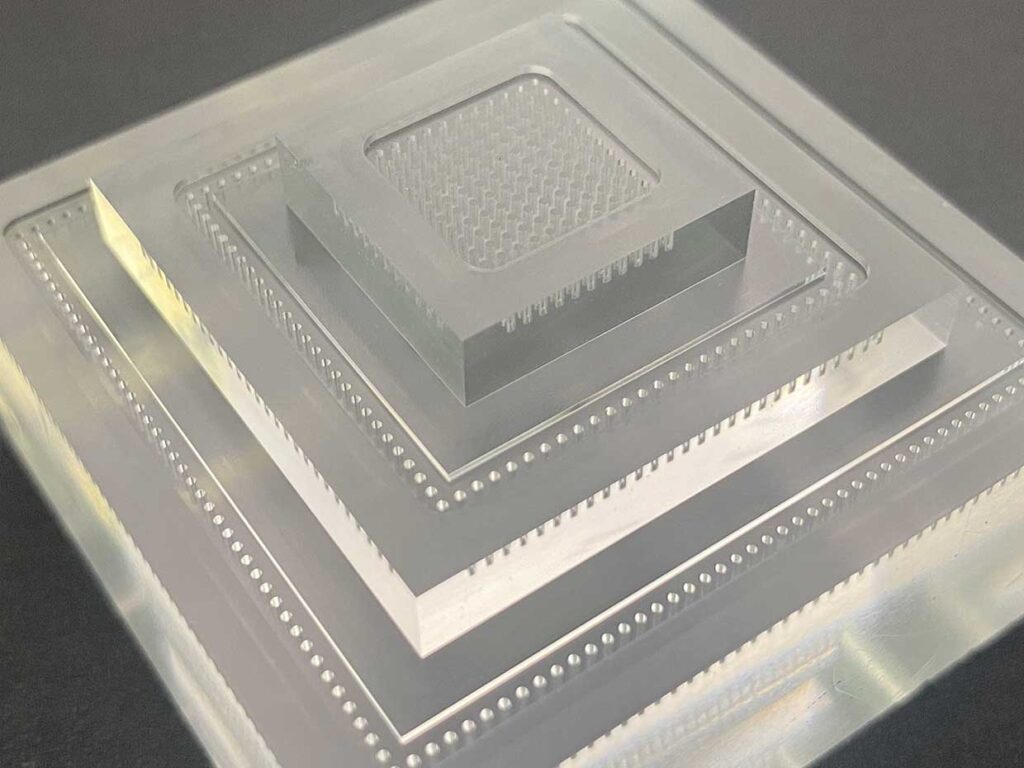

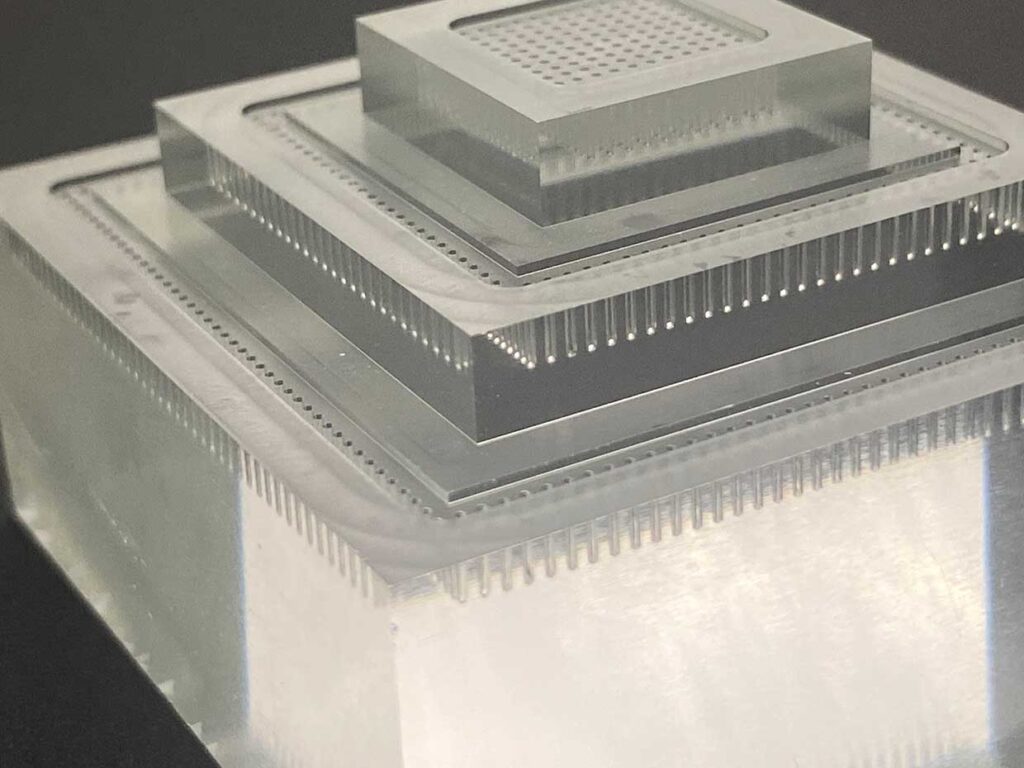

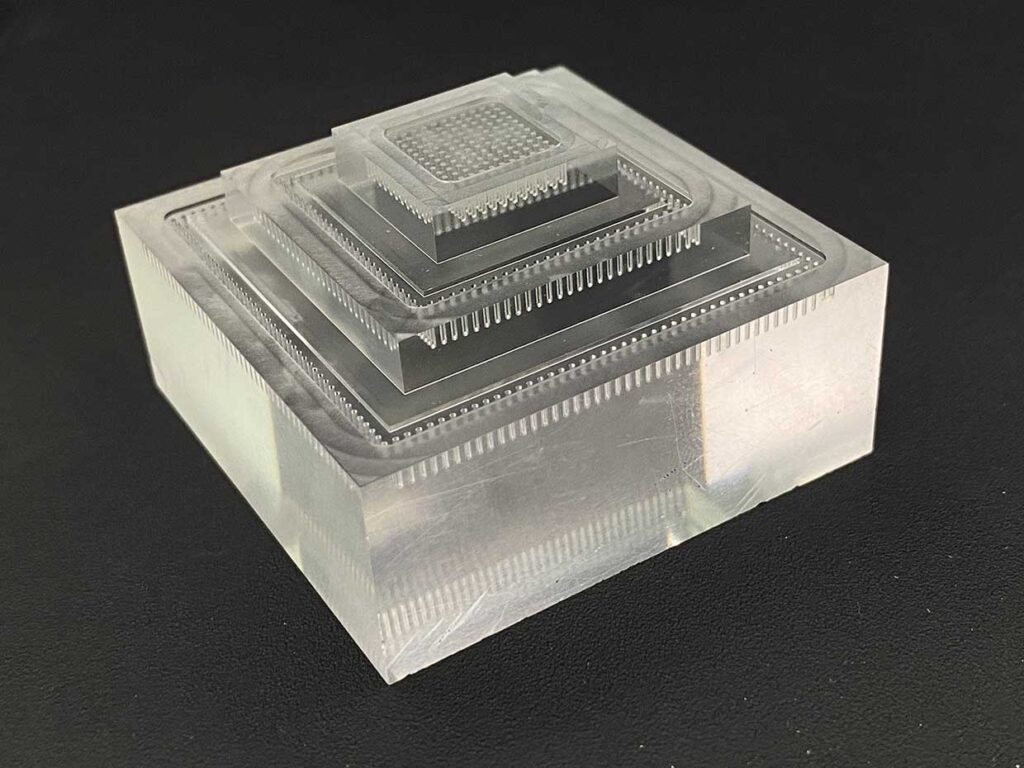

Workpiece to be processed
Work Details
Acrylic resin W50xH30xD50 *Pre-processed shape is a square block
Use of tools
Carbide End Mill for Resin Machining CR-LS-YSPS Series φ10xR0.2
Carbide end mill for resin machining YSPS series φ2.0
Carbide Luma type drill for resin processing YSPDR series φ0.5
Processing content
Hole diameter φ0.5, depth 3mm, number of holes 393 / pocket range 12mm, groove width 2mm, depth 0.5mm
Machine used
OKUMA MU400VA
Cutting conditions
| No. | Process engineering | Revolution (min-1) | Feed (㎜/min) | Depth of cut (mm) | Cutting oil | Machining Time (min) | Cutting length (m) |
|
|---|---|---|---|---|---|---|---|---|
| 1 | Shape processing | 6,000 | 2,000 | ap5.0 | ae0.5 | Air | 2 | 7 |
| 2 | Pocket, groove | 6,000 | 800 | ap0.5 | ae- | Air | 2 | 0.3 |
| 3 | Drilling | 10,000 | 50 | - | Water-soluble | 20 | - | |
POINT
The blade shape is specially designed for resin, which results in less burrs and better machined surfaces.
