Titanium alloy processing 02
Workpiece to be processed
Work Details

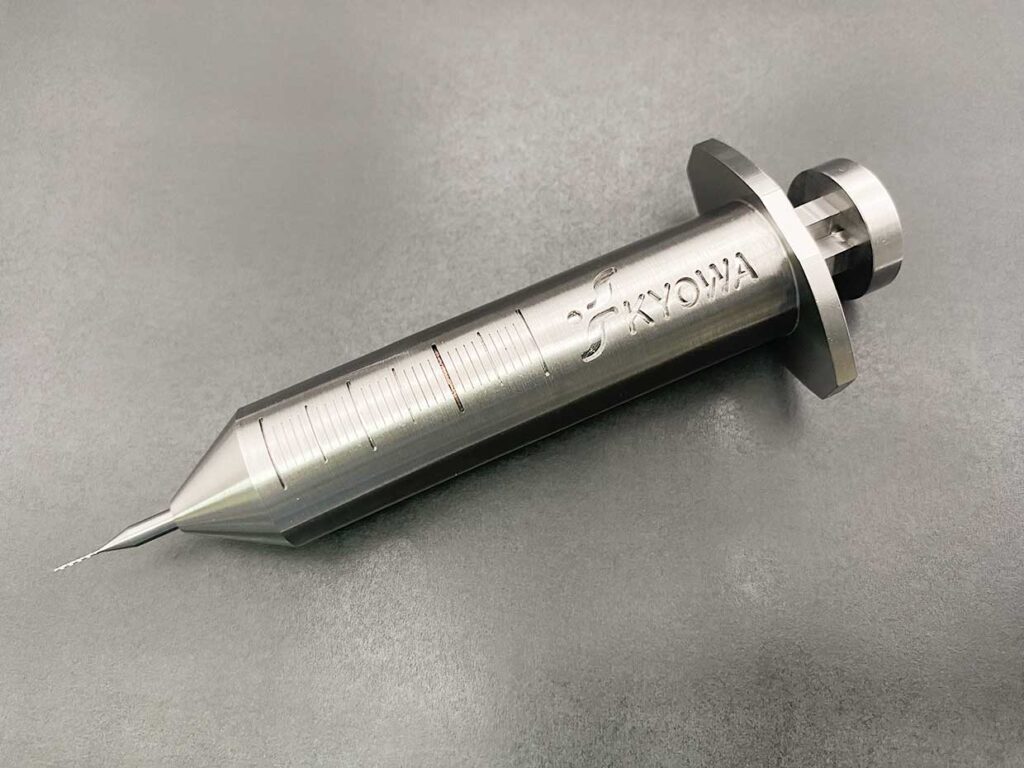

64 Titanium syringe (imitation)
Use of tools
Carbide Miniature End Mill with TiAlN Coating KMSEA Series φ0.6
Carbide 1-blade engraving cutter (R tip) YTBC series 30°xR0.05
Carbide Ball End Mill with TiAlN Coating YSEBDS Series R1.5
Processing content

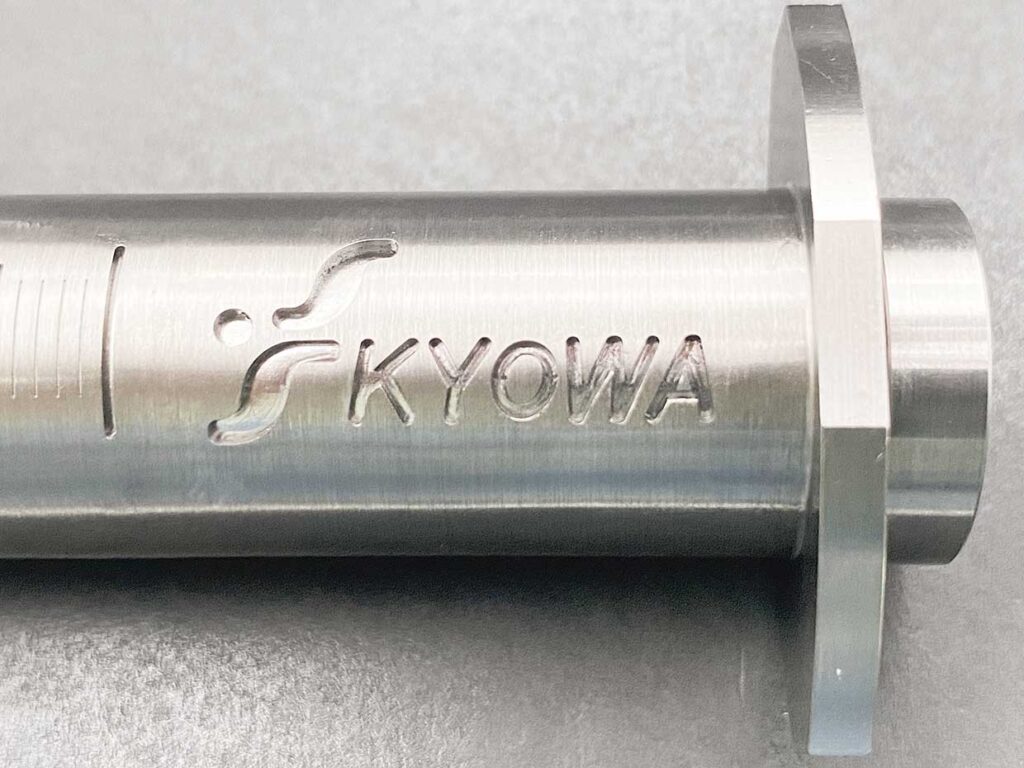

Company logo, scale, flange
Machine used
FANUC ROBODRILL α-D21Mi B5 Plus
Cutting conditions
| No. | Process engineering | Revolution (min-1) | Feed (㎜/min) | Depth of cut (mm) | Cutting oil | Machining Time (min) | Cutting length (m) |
|
|---|---|---|---|---|---|---|---|---|
| 1 | Company logo | 22,282 | 98 | ap0.15-0.5 | ae0.2-0.1 | Water-soluble | 38.6 | 4.1 |
| 2 | Scale | 23,000 | 115 | ap0.025 | ae- | Water-soluble | 17.6 | 2.0 |
| 3 | Flange | 10,610 | 850 | ap0.3-0.05 | ae0.6-0.05 | Water-soluble | 35.8 | 30.4 |
POINT
A wide range of blade diameters, angles, and tip R sizes are available.
