Titanium alloy processing 01

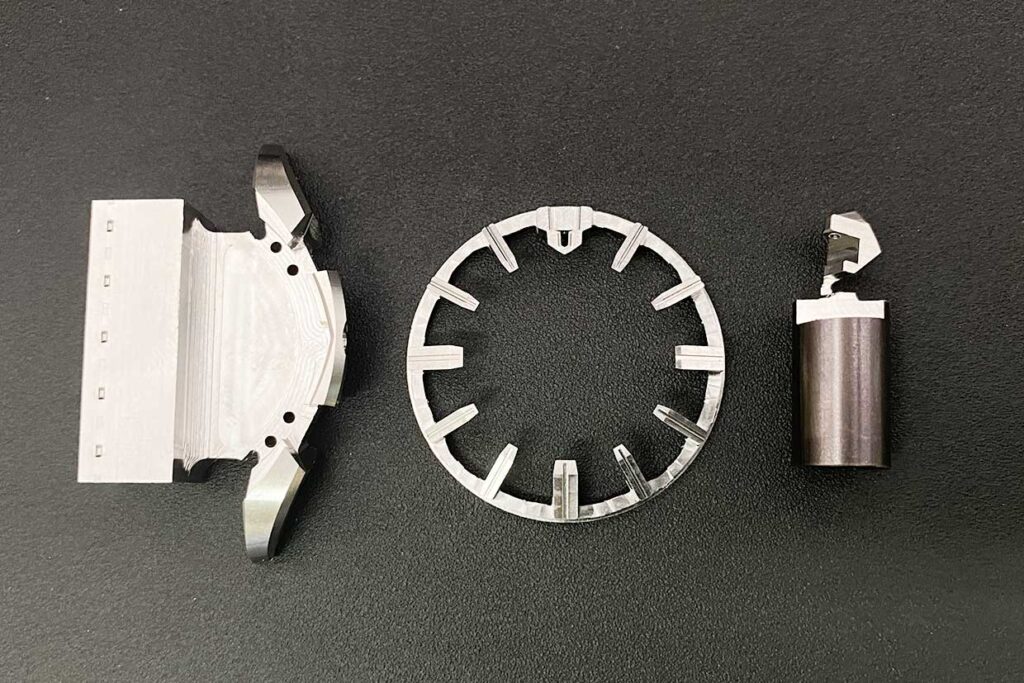

Workpiece to be processed

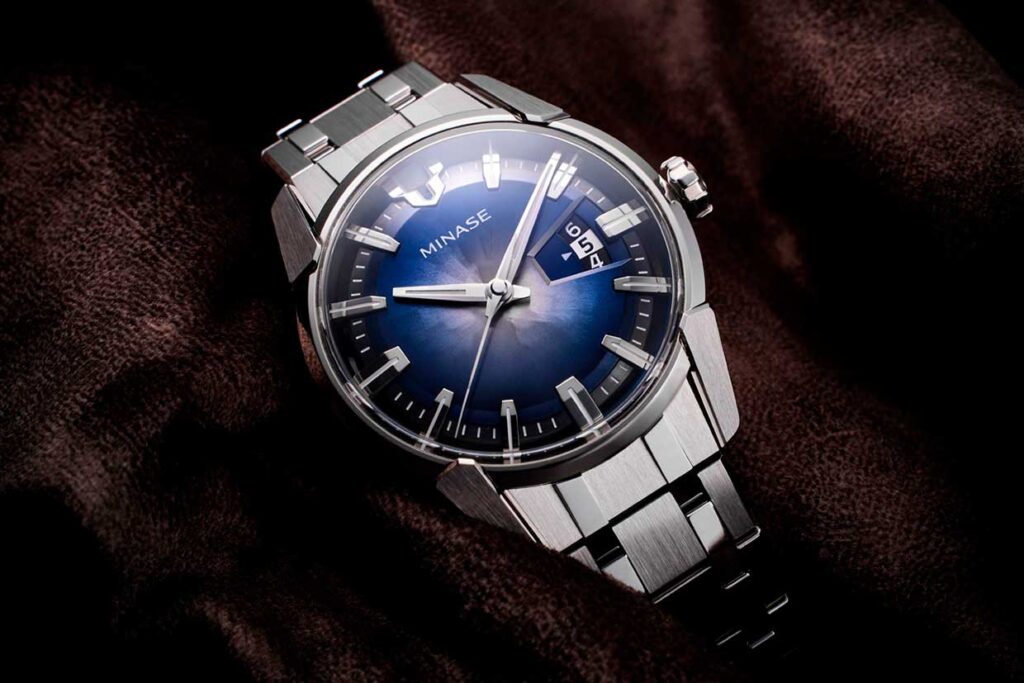

Reference image
Work Details
64 Titanium watch parts
Use of tools
Carbide Luma type drill with TiAlN coating KDRA series φ1.8
Carbide Miniature End Mill with TiAlN Coating KMSEA Series φ3.0
Processing content
Shape machining of each part
Machine used
FANUC ROBODRILL α-D21Mi B5 Plus
Cutting conditions
| No. | Process engineering | Revolution (min-1) | Feed (㎜/min) | Depth of cut (mm) | Cutting oil | Machining Time (min) | Cutting length (m) |
|
|---|---|---|---|---|---|---|---|---|
| 1 | Drilling | 8,842 | 88 | 0.5 | Water-soluble | 0.5 | 43.7 | |
| 2 | Shape processing | 4,775 | 115 | ap- | ae- | Water-soluble | 22 | 2,646 |
POINT
Both drills and end mills are coated,The lineup ranges from φ0.1 to φ3.0 in 0.01 increments.
