Brittle material processing
Machining of cemented carbides
Workpiece to be processed
Using the Tool Portrait
Work Details
Cemented carbide (V30 equivalent) *Size of Shogi piece
Use of tools
Diamond-coated end mill R0.5 (special product)

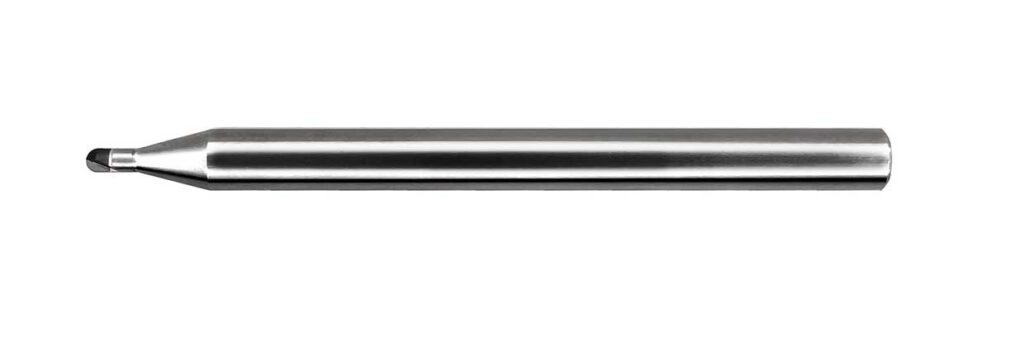

PCD Ball End Mill DCBE Series R0.5
Processing content

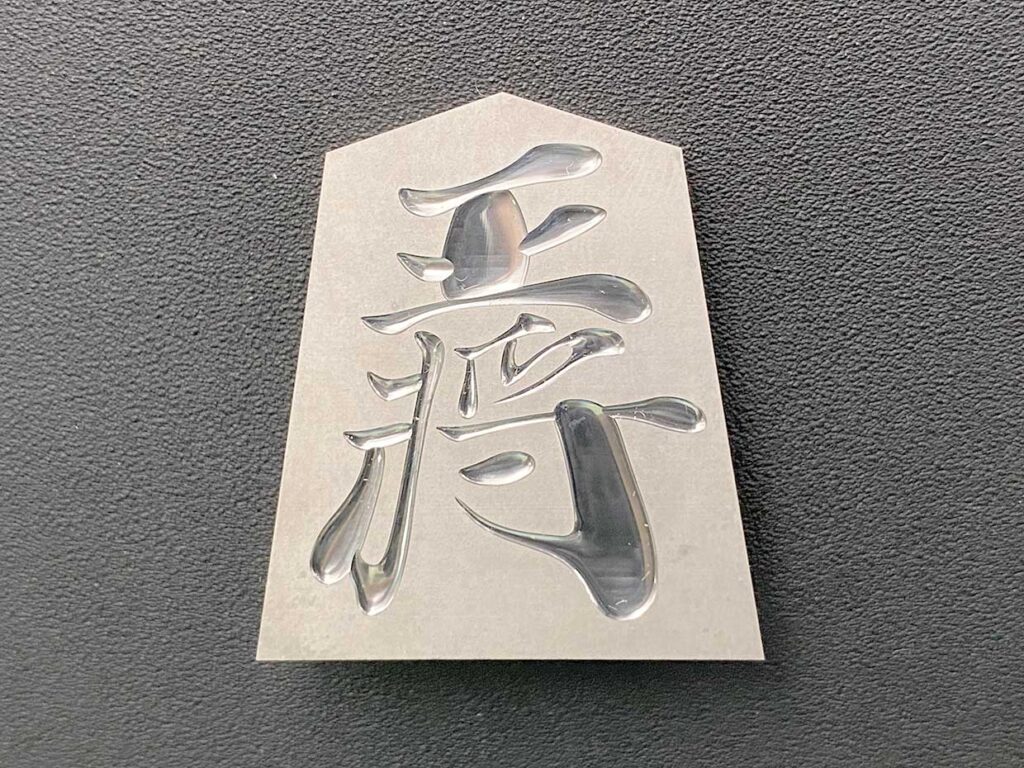

Character engraving (Shogi piece, Osho)
Cutting conditions
| No. | Process engineering | Revolution (min-1) | Feed (㎜/min) | Depth of cut (mm) | Cutting oil | Machining Time (min) | Cutting length (m) |
|---|---|---|---|---|---|---|---|
| 1 | Rough | 60,000 | 100 | 0.01 | Semi-dry | - | - |
| 2 | Finishing | 60,000 | 20 | 0.002 | Semi-dry | - | - |
POINT
Suitable for semi-finish to finish machining with PCD material specifications suitable for machining cemented carbide.
Smooth cutting edges are realized by special cutting edge finishing technology.
