Tungsten Carbide Keyseed Cutter – KKC-4

NEW PRPDUCT

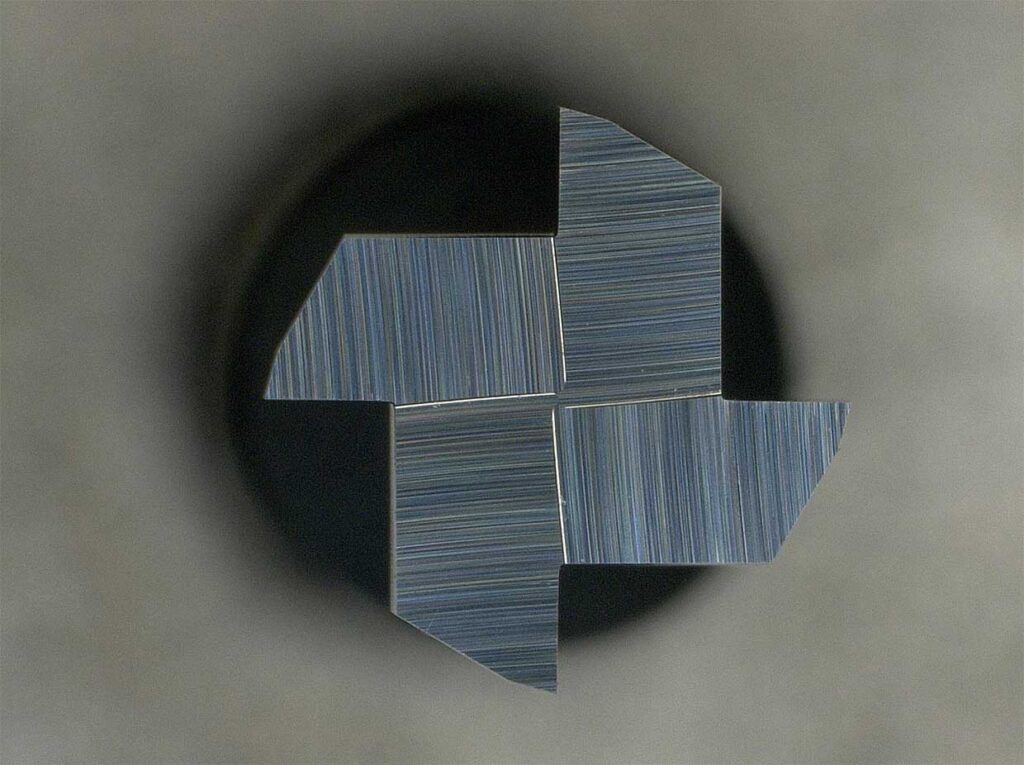

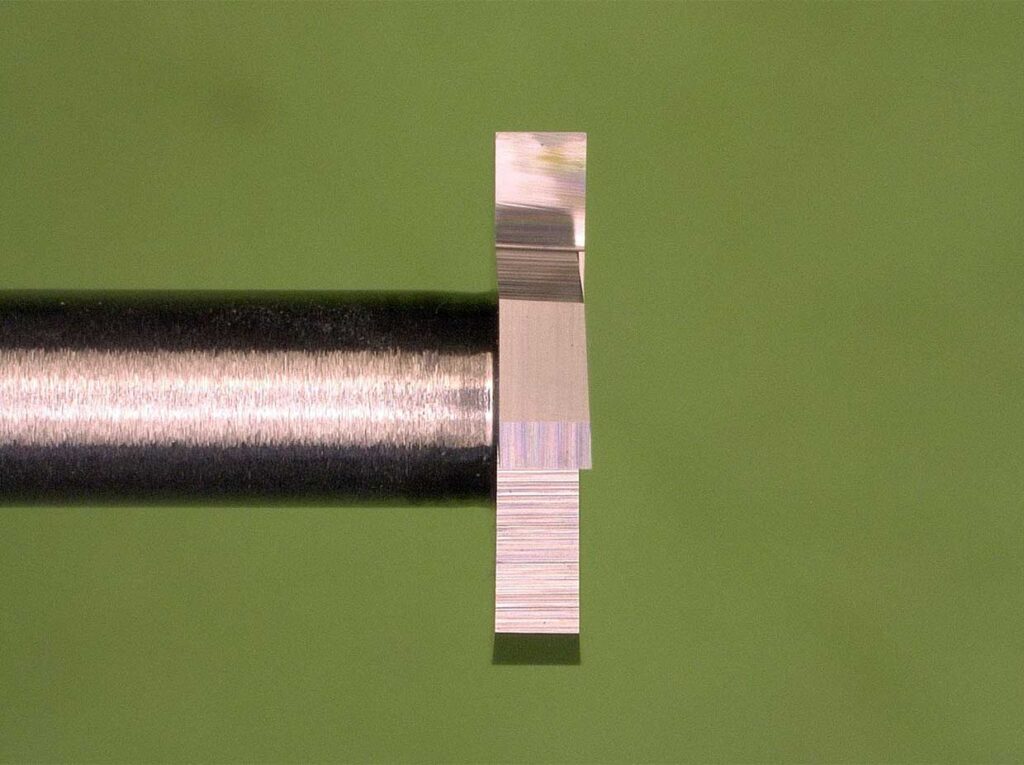

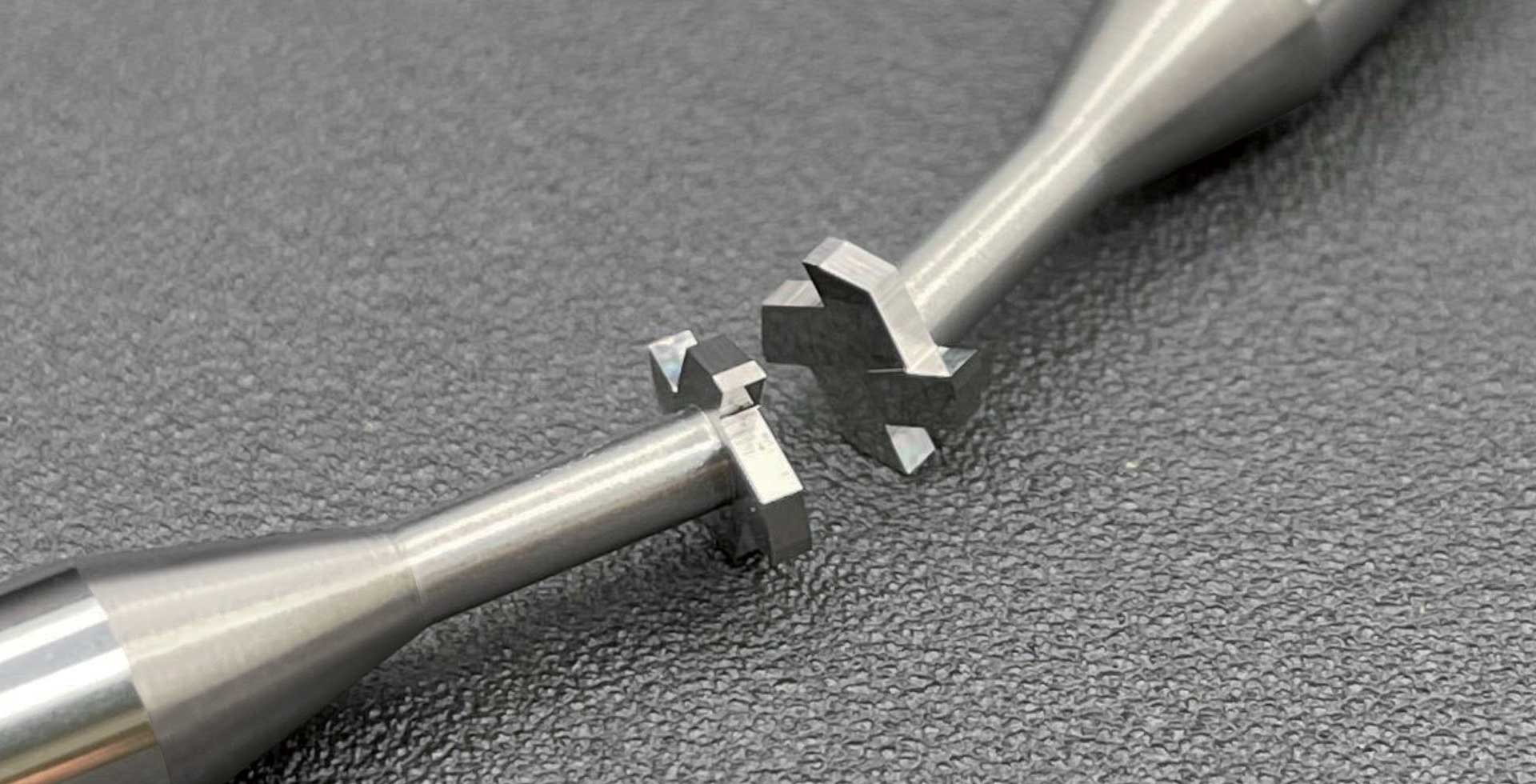

Tungsten Carbide Keyseed Cutter - KKC-4

A wide lineup of flute thicknesses 0.1 to 6mm is available.

The diffrence between the flute diameter and neck diameter is large, allowing for deep grooving.

Machining examples of Tungsten Carbide Keyseed Cutter (KKC-4)

Tools

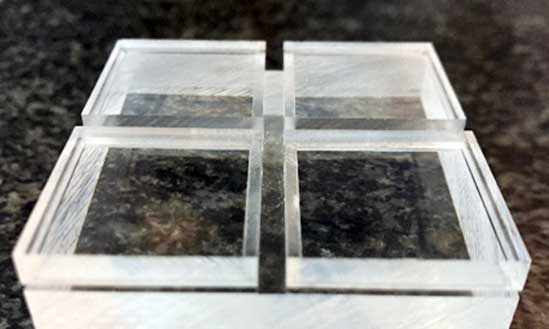

Acrylic

Processing condition

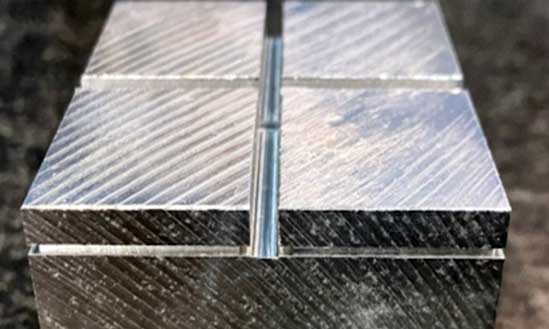

AI5052

Processing condition

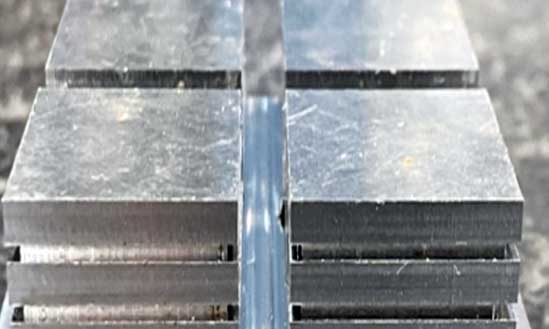

S50C

Processing condition

Referential Cutting Conditions

Workpiece	Carbon Steel / General Structural Steel S55C / SS		Alloy Steel / Tool Steel SCM / SKT / SKS / SKD		Cast iron FC / FCD		Aluminum Alloy ADC・AC		Resin
Cutting Speed	20m/min		20m/min		20m/min		40m/min		45m/min
Machining depth	0.1D		0.1D		0.1D		0.25D		0.25D
Flute Diameter mm	Revolution min-1	Feed ㎜/min	Revolution min-1	Feed ㎜/min	v	送り速度㎜/min	Revolution min-1	Feed ㎜/min	Revolution min-1	Feed ㎜/min
0.5	12,800	240	12,700	142	12,700	142	20,000	450	20,000	525
0.6	10,600	200	10,600	120	10,600	120	20,000	450	20,000	525
0.8	7,960	150	7,900	88	7,900	88	15,000	330	18,000	470
1	6,300	155	6,300	95	6,300	95	12,000	360	14,000	490
2	3,180	120	3,100	70	3,100	70	6,300	280	7,200	380
3	2,120	120	2,100	70	2,100	70	4,200	280	4,800	380
4	1,590	120	1,500	67	1,500	67	3,100	280	3,600	380
5	1,270	95	1,200	54	1,200	54	2,500	225	2,900	300
6	1,060	80	1,060	47	1,060	47	2,100	190	2,400	250
8	800	60	800	47	800	47	1,500	135	1,800	190
10	640	60	650	47	650	47	1,200	135	1,400	190
12	530	50	550	35	550	35	1,060	115	1,200	160

Product lineup

Unit [size:mm / Retail Price:JPY]

Code №	Flute Diameter (D)	Flute Length (ℓ)	Neck Diameter (d1)	Neck Length (ℓ2)	Total Length (L)	Shank Diameter (d)	Retail Price
KKC-400501010	0.5	0.1	0.27	1	50	3	18,400
KKC-400501020	0.5	0.1	0.27	2	50	3	19,400
KKC-400502010	0.5	0.2	0.27	1	50	3	16,700
KKC-400502020	0.5	0.2	0.27	2	50	3	17,400
KKC-400503010	0.5	0.3	0.27	1	50	3	15,800
KKC-400503020	0.5	0.3	0.27	2	50	3	16,500
KKC-400504010	0.5	0.4	0.27	1	50	3	15,800
KKC-400504020	0.5	0.4	0.27	2	50	3	16,500
KKC-400505010	0.5	0.5	0.27	1	50	3	15,000
KKC-400505020	0.5	0.5	0.27	2	50	3	15,700
KKC-400506010	0.5	0.6	0.27	1	50	3	15,000
KKC-400506020	0.5	0.6	0.27	2	50	3	15,700
KKC-400507010	0.5	0.7	0.27	1	50	3	15,000
KKC-400507020	0.5	0.7	0.27	2	50	3	15,700
KKC-400508010	0.5	0.8	0.27	1	50	3	15,000
KKC-400508020	0.5	0.8	0.27	2	50	3	15,700
KKC-400509010	0.5	0.9	0.27	1	50	3	15,000
KKC-400509020	0.5	0.9	0.27	2	50	3	15,700
KKC-400510010	0.5	1	0.27	1	50	3	15,000
KKC-400510020	0.5	1	0.27	2	50	3	15,700
KKC-400602012	0.6	0.2	0.35	1.2	50	3	16,700
KKC-400602024	0.6	0.2	0.35	2.4	50	3	17,400
KKC-400603012	0.6	0.3	0.35	1.2	50	3	15,800
KKC-400603024	0.6	0.3	0.35	2.4	50	3	16,500
KKC-400604012	0.6	0.4	0.35	1.2	50	3	15,800
KKC-400604024	0.6	0.4	0.35	2.4	50	3	16,500
KKC-400605012	0.6	0.5	0.35	1.2	50	3	15,000
KKC-400605024	0.6	0.5	0.35	2.4	50	3	15,700
KKC-400606012	0.6	0.6	0.35	1.2	50	3	15,000
KKC-400606024	0.6	0.6	0.35	2.4	50	3	15,700
KKC-400607012	0.6	0.7	0.35	1.2	50	3	15,000
KKC-400607024	0.6	0.7	0.35	2.4	50	3	15,700
KKC-400608012	0.6	0.8	0.35	1.2	50	3	15,000
KKC-400608024	0.6	0.8	0.35	2.4	50	3	15,700
KKC-400609012	0.6	0.9	0.35	1.2	50	3	15,000
KKC-400609024	0.6	0.9	0.35	2.4	50	3	15,700
KKC-400610012	0.6	1	0.35	1.2	50	3	15,000
KKC-400610024	0.6	1	0.35	2.4	50	3	15,700
KKC-400802016	0.8	0.2	0.45	1.6	50	3	15,000
KKC-400802032	0.8	0.2	0.45	3.2	50	3	15,700
KKC-400803016	0.8	0.3	0.45	1.6	50	3	14,200
KKC-400803032	0.8	0.3	0.45	3.2	50	3	14,800
KKC-400804016	0.8	0.4	0.45	1.6	50	3	14,200
KKC-400804032	0.8	0.4	0.45	3.2	50	3	14,800
KKC-400805016	0.8	0.5	0.45	1.6	50	3	13,400
KKC-400805032	0.8	0.5	0.45	3.2	50	3	14,000
KKC-400806016	0.8	0.6	0.45	1.6	50	3	13,400
KKC-400806032	0.8	0.6	0.45	3.2	50	3	14,000
KKC-400807016	0.8	0.7	0.45	1.6	50	3	13,400
KKC-400807032	0.8	0.7	0.45	3.2	50	3	14,000
KKC-400808016	0.8	0.8	0.45	1.6	50	3	13,400
KKC-400808032	0.8	0.8	0.45	3.2	50	3	14,000
KKC-400809016	0.8	0.9	0.45	1.6	50	3	13,400
KKC-400809032	0.8	0.9	0.45	3.2	50	3	14,000
KKC-400810016	0.8	1	0.45	1.6	50	3	13,400
KKC-400810032	0.8	1	0.45	3.2	50	3	14,000
KKC-401002020	1	0.2	0.55	2	50	3	14,000
KKC-401002040	1	0.2	0.55	4	50	3	14,700
KKC-401003020	1	0.3	0.55	2	50	3	13,400
KKC-401003040	1	0.3	0.55	4	50	3	14,000
KKC-401004020	1	0.4	0.55	2	50	3	13,400
KKC-401004040	1	0.4	0.55	4	50	3	14,000
KKC-401005020	1	0.5	0.55	2	50	3	12,700
KKC-401005040	1	0.5	0.55	4	50	3	13,400
KKC-401006020	1	0.6	0.55	2	50	3	12,700
KKC-401006040	1	0.6	0.55	4	50	3	13,400
KKC-401007020	1	0.7	0.55	2	50	3	12,700
KKC-401007040	1	0.7	0.55	4	50	3	13,400
KKC-401008020	1	0.8	0.55	2	50	3	12,700
KKC-401008040	1	0.8	0.55	4	50	3	13,400
KKC-401009020	1	0.9	0.55	2	50	3	12,700
KKC-401009040	1	0.9	0.55	4	50	3	13,400
KKC-401010020	1	1	0.55	2	50	3	12,700
KKC-401010040	1	1	0.55	4	50	3	13,400
KKC-401202024	1.2	0.2	0.65	2.4	50	3	14,000
KKC-401202050	1.2	0.2	0.65	5	50	3	15,000
KKC-401203024	1.2	0.3	0.65	2.4	50	3	13,400
KKC-401203050	1.2	0.3	0.65	5	50	3	14,300
KKC-401204024	1.2	0.4	0.65	2.4	50	3	13,400
KKC-401204050	1.2	0.4	0.65	5	50	3	14,300
KKC-401205024	1.2	0.5	0.65	2.4	50	3	12,700
KKC-401205050	1.2	0.5	0.65	5	50	3	13,700
KKC-401206024	1.2	0.6	0.65	2.4	50	3	12,700
KKC-401206050	1.2	0.6	0.65	5	50	3	13,700
KKC-401207024	1.2	0.7	0.65	2.4	50	3	12,700
KKC-401207050	1.2	0.7	0.65	5	50	3	13,700
KKC-401208024	1.2	0.8	0.65	2.4	50	3	12,700
KKC-401208050	1.2	0.8	0.65	5	50	3	13,700
KKC-401209024	1.2	0.9	0.65	2.4	50	3	12,700
KKC-401209050	1.2	0.9	0.65	5	50	3	13,700
KKC-401210024	1.2	1	0.65	2.4	50	3	12,700
KKC-401210050	1.2	1	0.65	5	50	3	13,700
KKC-401502030	1.5	0.2	0.8	3	50	3	13,400
KKC-401502060	1.5	0.2	0.8	6	50	3	14,300
KKC-401503030	1.5	0.3	0.8	3	50	3	12,700
KKC-401503060	1.5	0.3	0.8	6	50	3	13,700
KKC-401504030	1.5	0.4	0.8	3	50	3	12,700
KKC-401504060	1.5	0.4	0.8	6	50	3	13,700
KKC-401505030	1.5	0.5	0.8	3	50	3	12,000
KKC-401505060	1.5	0.5	0.8	6	50	3	13,000
KKC-401506030	1.5	0.6	0.8	3	50	3	12,000
KKC-401506060	1.5	0.6	0.8	6	50	3	13,000
KKC-401507030	1.5	0.7	0.8	3	50	3	12,000
KKC-401507060	1.5	0.7	0.8	6	50	3	13,000
KKC-401508030	1.5	0.8	0.8	3	50	3	12,000
KKC-401508060	1.5	0.8	0.8	6	50	3	13,000
KKC-401509030	1.5	0.9	0.8	3	50	3	12,000
KKC-401509060	1.5	0.9	0.8	6	50	3	13,000
KKC-401510030	1.5	1	0.8	3	50	3	12,000
KKC-401510060	1.5	1	0.8	6	50	3	13,000
KKC-402002040	2	0.2	1	4	50	3	12,500
KKC-402002080	2	0.2	1	8	50	3	13,500
KKC-402003040	2	0.3	1	4	50	3	12,000
KKC-402003080	2	0.3	1	8	50	3	13,000
KKC-402004040	2	0.4	1	4	50	3	12,000
KKC-402004080	2	0.4	1	8	50	3	13,000
KKC-402005040	2	0.5	1	4	50	3	11,000
KKC-402005080	2	0.5	1	8	50	3	12,000
KKC-402006040	2	0.6	1	4	50	3	11,000
KKC-402006080	2	0.6	1	8	50	3	12,000
KKC-402008040	2	0.8	1	4	50	3	10,500
KKC-402008080	2	0.8	1	8	50	3	11,500
KKC-402010040	2	1	1	4	50	3	10,500
KKC-402010080	2	1	1	8	50	3	11,500
KKC-403003050	3	0.3	1.2	5	50	3	11,500
KKC-403003100	3	0.3	1.2	1	50	3	12,500
KKC-403004050	3	0.4	1.2	5	50	3	11,500
KKC-403004100	3	0.4	1.2	1	50	3	12,500
KKC-403005050	3	0.5	1.2	5	50	3	10,500
KKC-403005100	3	0.5	1.2	1	50	3	11,500
KKC-403006050	3	0.6	1.2	5	50	3	10,500
KKC-403006100	3	0.6	1.2	1	50	3	11,500
KKC-403008050	3	0.8	1.2	5	50	3	10,000
KKC-403008100	3	0.8	1.2	1	50	3	11,000
KKC-403010050	3	1	1.2	5	50	3	10,000
KKC-403010100	3	1	1.2	1	50	3	11,000
KKC-403015050	3	1.5	1.2	5	50	3	10,000
KKC-403015100	3	1.5	1.2	1	50	3	11,000
KKC-403020050	3	2	1.2	5	50	3	10,000
KKC-403020100	3	2	1.2	1	50	3	11,000
KKC-404003060	4	0.3	1.5	6	60	4	12,000
KKC-404003120	4	0.3	1.5	12	60	4	13,000
KKC-404004060	4	0.4	1.5	6	60	4	12,000
KKC-404004120	4	0.4	1.5	12	60	4	13,000
KKC-404005060	4	0.5	1.5	6	60	4	11,000
KKC-404005120	4	0.5	1.5	12	60	4	12,000
KKC-404006060	4	0.6	1.5	6	60	4	11,000
KKC-404006120	4	0.6	1.5	12	60	4	12,000
KKC-404008060	4	0.8	1.5	6	60	4	10,500
KKC-404008120	4	0.8	1.5	12	60	4	11,500
KKC-404010060	4	1	1.5	6	60	4	10,000
KKC-404010120	4	1	1.5	12	60	4	11,500
KKC-404015060	4	1.5	1.5	6	60	4	10,500
KKC-404015120	4	1.5	1.5	12	60	4	11,500
KKC-404020060	4	2	1.5	6	60	4	10,500
KKC-404020120	4	2	1.5	12	60	4	11,500
KKC-405003070	5	0.3	2	7	60	6	13,000
KKC-405003150	5	0.3	2	15	60	6	14,000
KKC-405004070	5	0.4	2	7	60	6	13,000
KKC-405004150	5	0.4	2	15	60	6	14,000
KKC-405005070	5	0.5	2	7	60	6	12,000
KKC-405005150	5	0.5	2	15	60	6	13,000
KKC-405006070	5	0.6	2	7	60	6	12,000
KKC-405006150	5	0.6	2	15	60	6	13,000
KKC-405008070	5	0.8	2	7	60	6	11,400
KKC-405008150	5	0.8	2	15	60	6	12,400
KKC-405010070	5	1	2	7	60	6	11,400
KKC-405010150	5	1	2	15	60	6	12,400
KKC-405015070	5	1.5	2	7	60	6	11,400
KKC-405015150	5	1.5	2	15	60	6	12,400
KKC-405020070	5	2	2	7	60	6	11,400
KKC-405020150	5	2	2	15	60	6	12,400
KKC-406003070	6	0.3	2.4	7	60	6	13,000
KKC-406003150	6	0.3	2.4	15	60	6	14,000
KKC-406004070	6	0.4	2.4	7	60	6	13,000
KKC-406004150	6	0.4	2.4	15	60	6	14,000
KKC-406005070	6	0.5	2.4	7	60	6	12,000
KKC-406005150	6	0.5	2.4	15	60	6	13,000
KKC-406006070	6	0.6	2.4	7	60	6	12,000
KKC-406006150	6	0.6	2.4	15	60	6	13,000
KKC-406008070	6	0.8	2.4	7	60	6	11,400
KKC-406008150	6	0.8	2.4	15	60	6	12,400
KKC-406010070	6	1	2.4	7	60	6	11,400
KKC-406010150	6	1	2.4	15	60	6	12,400
KKC-406015070	6	1.5	2.4	7	60	6	11,400
KKC-406015150	6	1.5	2.4	15	60	6	12,400
KKC-406020070	6	2	2.4	7	60	6	11,400
KKC-406020150	6	2	2.4	15	60	6	12,400
KKC-406030070	6	3	2.4	7	60	6	11,400
KKC-406030150	6	3	2.4	15	60	6	12,400
KKC-408003080	8	0.3	3	8	70	8	20,000
KKC-408003160	8	0.3	3	16	70	8	21,500
KKC-408004080	8	0.4	3	8	70	8	20,000
KKC-408004160	8	0.4	3	16	70	8	21,500
KKC-408005080	8	0.5	3	8	70	8	18,400
KKC-408005160	8	0.5	3	16	70	8	19,800
KKC-408006080	8	0.6	3	8	70	8	18,400
KKC-408006160	8	0.6	3	16	70	8	19,800
KKC-408008080	8	0.8	3	8	70	8	17,400
KKC-408008160	8	0.8	3	16	70	8	18,800
KKC-408010080	8	1	3	8	70	8	17,400
KKC-408010160	8	1	3	16	70	8	18,800
KKC-408015080	8	1.5	3	8	70	8	17,400
KKC-408015160	8	1.5	3	16	70	8	18,800
KKC-408020080	8	2	3	8	70	8	17,400
KKC-408020160	8	2	3	16	70	8	18,800
KKC-408030080	8	3	3	8	70	8	17,400
KKC-408030160	8	3	3	16	70	8	18,800
KKC-408040080	8	4	3	8	70	8	17,400
KKC-408040160	8	4	3	16	70	8	18,800
KKC-410003100	10	0.3	3.5	1	80	10	24,000
KKC-410003200	10	0.3	3.5	2	80	10	26,000
KKC-410004100	10	0.4	3.5	1	80	10	24,000
KKC-410004200	10	0.4	3.5	2	80	10	26,000
KKC-410005100	10	0.5	3.5	1	80	10	22,000
KKC-410006200	10	0.5	3.5	2	80	10	24,000
KKC-410006100	10	0.6	3.5	1	80	10	22,000
KKC-410006200	10	0.6	3.5	2	80	10	24,000
KKC-410008100	10	0.8	3.5	1	80	10	21,000
KKC-410008200	10	0.8	3.5	2	80	10	23,000
KKC-410010100	10	1	3.5	1	80	10	21,000
KKC-410010200	10	1	3.5	2	80	10	23,000
KKC-410015100	10	1.5	3.5	1	80	10	21,000
KKC-410015200	10	1.5	3.5	2	80	10	23,000
KKC-410020100	10	2	3.5	1	80	10	21,000
KKC-410020200	10	2	3.5	2	80	10	23,000
KKC-410030100	10	3	3.5	1	80	10	21,000
KKC-410030200	10	3	3.5	2	80	10	23,000
KKC-410040100	10	4	3.5	1	80	10	21,000
KKC-410040200	10	4	3.5	2	80	10	23,000
KKC-410050100	10	5	3.5	1	80	10	21,000
KKC-410050200	10	5	3.5	2	80	10	23,000
KKC-412003120	12	0.3	4	12	80	12	26,000
KKC-412003240	12	0.3	4	24	80	12	28,000
KKC-412004120	12	0.4	4	12	80	12	26,000
KKC-412004240	12	0.4	4	24	80	12	28,000
KKC-412005120	12	0.5	4	12	80	12	24,000
KKC-412005240	12	0.5	4	24	80	12	26,000
KKC-412006120	12	0.6	4	12	80	12	24,000
KKC-412006240	12	0.6	4	24	80	12	26,000
KKC-412008120	12	0.8	4	12	80	12	23,000
KKC-412008240	12	0.8	4	24	80	12	25,000

NEW PRPDUCT

Tungsten Carbide Keyseed Cutter - KKC-4

Flute diameters from Φ0.5 to Φ12 are acailable.

A wide lineup of flute thicknesses 0.1 to 6mm is available.

The diffrence between the flute diameter and neck diameter is large, allowing for deep grooving.

Machining examples of Tungsten Carbide Keyseed Cutter (KKC-4)

Acrylic

AI5052

S50C

Referential Cutting Conditions

Product lineup

Technology of Micro-Tool for Infinity

Products Info

Information

YouTube

Menu
