KKC-4

超硬キーシードカッター

切削条件参考

被削材   炭素鋼・一般構造用鋼
S55C・SS材
合金鋼・工具鋼
SCM・SKT・SKS・SKD
鋳   鉄
FC・FCD
アルミニウム合金
ADC・AC
樹脂
切削速度20m/min20m/min20m/min40m/min45m/min
加工深さ0.1D0.1D0.1D0.25D0.25D
刃 径
mm
回転数
min-1
送り速度
㎜/min
回転数
min-1
送り速度
㎜/min
回転数
min-1
送り速度
㎜/min
回転数
min-1
送り速度
㎜/min
回転数
min-1
送り速度
㎜/min
0.5 12,800 240 12,700 142 12,700 142 20,000   450 20,000525
0.6 10,600 200 10,600 120 10,600 120 20,000450 20,000525
0.8 7,960 150 7,900 88 7,900 88 15,000330 18,000470
1 6,300 155 6,300 95 6,300 95 12,000360 14,000490
2 3,180 120 3,10070 3,10070 6,300280 7,200380
3 2,120 120 2,10070 2,10070 4,200280 4,800380
4 1,590 120 1,50067 1,50067 3,100280 3,600380
5 1,270 95 1,20054 1,20054 2,500225 2,900300
6 1,060 80 1,06047 1,06047 2,100190 2,400250
8 800 60 800 47 800 47 1,500135 1,800190
10 640 60 650 47 650 47 1,200135 1,400190
12 530 50 550 35 550 35 1,060115 1,200160

製品ラインナップ

単位 [寸法:mm/価格:円]

Unit [size:mm/Retail Price:JPY]

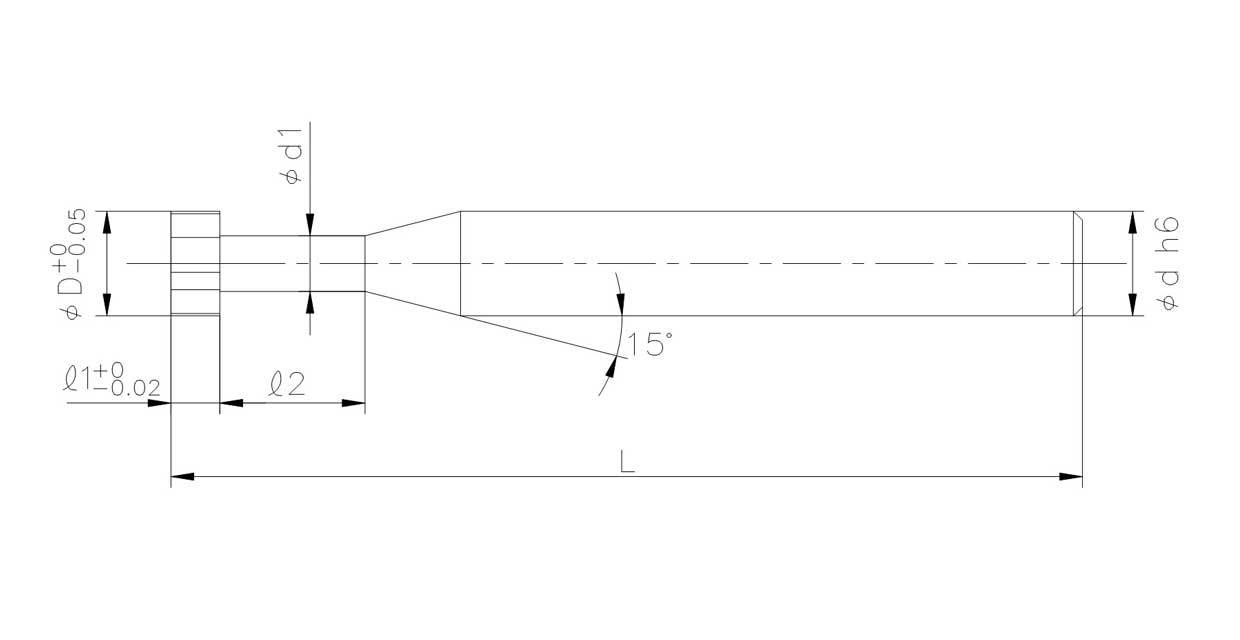

品 番刃径 D刃厚ℓ首径d1首長ℓ2全長L柄径d標準価格
KKC-400501010 0.5 0.1 0.27 150318,400
KKC-400501020 0.5 0.1 0.27 250319,400
KKC-400502010 0.5 0.2 0.27 150316,700
KKC-400502020 0.5 0.2 0.27 250317,400
KKC-400503010 0.5 0.3 0.27 150315,800
KKC-400503020 0.5 0.3 0.27 250316,500
KKC-400504010 0.5 0.4 0.27 150315,800
KKC-400504020 0.5 0.4 0.27 250316,500
KKC-400505010 0.5 0.5 0.27 150315,000
KKC-400505020 0.5 0.5 0.27 250315,700
KKC-400506010 0.5 0.6 0.27 150315,000
KKC-400506020 0.5 0.6 0.27 250315,700
KKC-400507010 0.5 0.7 0.27 150315,000
KKC-400507020 0.5 0.7 0.27 250315,700
KKC-400508010 0.5 0.8 0.27 150315,000
KKC-400508020 0.5 0.8 0.27 250315,700
KKC-400509010 0.5 0.9 0.27 150315,000
KKC-400509020 0.5 0.9 0.27 250315,700
KKC-400510010 0.5 1 0.27 150315,000
KKC-400510020 0.5 1 0.27 250315,700
KKC-400602012 0.6 0.2 0.35 1.250316,700
KKC-400602024 0.6 0.2 0.35 2.450317,400
KKC-400603012 0.6 0.3 0.35 1.250315,800
KKC-400603024 0.6 0.3 0.35 2.450316,500
KKC-400604012 0.6 0.4 0.35 1.250315,800
KKC-400604024 0.6 0.4 0.35 2.450316,500
KKC-400605012 0.6 0.5 0.35 1.250315,000
KKC-400605024 0.6 0.5 0.35 2.450315,700
KKC-400606012 0.6 0.6 0.35 1.250315,000
KKC-400606024 0.6 0.6 0.35 2.450315,700
KKC-400607012 0.6 0.7 0.35 1.250315,000
KKC-400607024 0.6 0.7 0.35 2.450315,700
KKC-400608012 0.6 0.8 0.35 1.250315,000
KKC-400608024 0.6 0.8 0.35 2.450315,700
KKC-400609012 0.6 0.9 0.35 1.250315,000
KKC-400609024 0.6 0.9 0.35 2.450315,700
KKC-400610012 0.6 1 0.35 1.250315,000
KKC-400610024 0.6 1 0.35 2.450315,700
KKC-400802016 0.8 0.2 0.45 1.650315,000
KKC-400802032 0.8 0.2 0.45 3.250315,700
KKC-400803016 0.8 0.3 0.45 1.650314,200
KKC-400803032 0.8 0.3 0.45 3.250314,800
KKC-400804016 0.8 0.4 0.45 1.650314,200
KKC-400804032 0.8 0.4 0.45 3.250314,800
KKC-400805016 0.8 0.5 0.45 1.650313,400
KKC-400805032 0.8 0.5 0.45 3.250314,000
KKC-400806016 0.8 0.6 0.45 1.650313,400
KKC-400806032 0.8 0.6 0.45 3.250314,000
KKC-400807016 0.8 0.7 0.45 1.650313,400
KKC-400807032 0.8 0.7 0.45 3.250314,000
KKC-400808016 0.8 0.8 0.45 1.650313,400
KKC-400808032 0.8 0.8 0.45 3.250314,000
KKC-400809016 0.8 0.9 0.45 1.650313,400
KKC-400809032 0.8 0.9 0.45 3.250314,000
KKC-400810016 0.8 1 0.45 1.650313,400
KKC-400810032 0.8 1 0.45 3.250314,000
KKC-401002020 1 0.2 0.55 250314,000
KKC-401002040 1 0.2 0.55 450314,700
KKC-401003020 1 0.3 0.55 250313,400
KKC-401003040 1 0.3 0.55 450314,000
KKC-401004020 1 0.4 0.55 250313,400
KKC-401004040 1 0.4 0.55 450314,000
KKC-401005020 1 0.5 0.55 250312,700
KKC-401005040 1 0.5 0.55 450313,400
KKC-401006020 1 0.6 0.55 250312,700
KKC-401006040 1 0.6 0.55 450313,400
KKC-401007020 1 0.7 0.55 250312,700
KKC-401007040 1 0.7 0.55 450313,400
KKC-401008020 1 0.8 0.55 250312,700
KKC-401008040 1 0.8 0.55 450313,400
KKC-401009020 1 0.9 0.55 250312,700
KKC-401009040 1 0.9 0.55 450313,400
KKC-401010020 1 1 0.55 250312,700
KKC-401010040 1 1 0.55 450313,400
KKC-401202024 1.2 0.2 0.65 2.450314,000
KKC-401202050 1.2 0.2 0.65 550315,000
KKC-401203024 1.2 0.3 0.65 2.450313,400
KKC-401203050 1.2 0.3 0.65 550314,300
KKC-401204024 1.2 0.4 0.65 2.450313,400
KKC-401204050 1.2 0.4 0.65 550314,300
KKC-401205024 1.2 0.5 0.65 2.450312,700
KKC-401205050 1.2 0.5 0.65 550313,700
KKC-401206024 1.2 0.6 0.65 2.450312,700
KKC-401206050 1.2 0.6 0.65 550313,700
KKC-401207024 1.2 0.7 0.65 2.450312,700
KKC-401207050 1.2 0.7 0.65 550313,700
KKC-401208024 1.2 0.8 0.65 2.450312,700
KKC-401208050 1.2 0.8 0.65 550313,700
KKC-401209024 1.2 0.9 0.65 2.450312,700
KKC-401209050 1.2 0.9 0.65 550313,700
KKC-401210024 1.2 1 0.65 2.450312,700
KKC-401210050 1.2 1 0.65 550313,700
KKC-401502030 1.5 0.2 0.8 350313,400
KKC-401502060 1.5 0.2 0.8 650314,300
KKC-401503030 1.5 0.3 0.8 350312,700
KKC-401503060 1.5 0.3 0.8 650313,700
KKC-401504030 1.5 0.4 0.8 350312,700
KKC-401504060 1.5 0.4 0.8 650313,700
KKC-401505030 1.5 0.5 0.8 350312,000
KKC-401505060 1.5 0.5 0.8 650313,000
KKC-401506030 1.5 0.6 0.8 350312,000
KKC-401506060 1.5 0.6 0.8 650313,000
KKC-401507030 1.5 0.7 0.8 350312,000
KKC-401507060 1.5 0.7 0.8 650313,000
KKC-401508030 1.5 0.8 0.8 350312,000
KKC-401508060 1.5 0.8 0.8 650313,000
KKC-401509030 1.5 0.9 0.8 350312,000
KKC-401509060 1.5 0.9 0.8 650313,000
KKC-401510030 1.5 1 0.8 350312,000
KKC-401510060 1.5 1 0.8 650313,000
KKC-402002040 2 0.2 1 450312,500
KKC-402002080 2 0.2 1 850313,500
KKC-402003040 2 0.3 1 450312,000
KKC-402003080 2 0.3 1 850313,000
KKC-402004040 2 0.4 1 450312,000
KKC-402004080 2 0.4 1 850313,000
KKC-4020050402 0.5 14 50311,000
KKC-4020050802 0.5 1 850312,000
KKC-4020060402 0.6 1 450311,000
KKC-4020060802 0.6 1 850312,000
KKC-4020080402 0.8 1 450310,500
KKC-4020080802 0.8 1 850311,500
KKC-4020100402 1 1 450310,500
KKC-4020100802 1 1 850311,500
KKC-4030030503 0.3 1.2 550311,500
KKC-4030031003 0.3 1.2 1 50312,500
KKC-4030040503 0.4 1.2 550311,500
KKC-4030041003 0.4 1.2 1 50312,500
KKC-4030050503 0.5 1.2 550310,500
KKC-4030051003 0.5 1.2 1 50311,500
KKC-4030060503 0.6 1.2 550310,500
KKC-4030061003 0.6 1.2 1 50311,500
KKC-4030080503 0.8 1.2 550310,000
KKC-4030081003 0.8 1.2 1 50311,000
KKC-4030100503 1 1.2 550310,000
KKC-4030101003 1 1.2 1 50311,000
KKC-4030150503 1.5 1.2 550310,000
KKC-4030151003 1.5 1.2 1 50311,000
KKC-4030200503 2 1.2 550310,000
KKC-4030201003 2 1.2 1 50311,000
KKC-4040030604 0.3 1.5 660412,000
KKC-4040031204 0.3 1.5 1260413,000
KKC-4040040604 0.4 1.5 660412,000
KKC-4040041204 0.4 1.5 1260413,000
KKC-4040050604 0.5 1.5 660411,000
KKC-4040051204 0.5 1.5 1260412,000
KKC-4040060604 0.6 1.5 660411,000
KKC-4040061204 0.6 1.5 1260412,000
KKC-4040080604 0.8 1.5 660410,500
KKC-4040081204 0.8 1.5 1260411,500
KKC-4040100604 1 1.5 660410,000
KKC-4040101204 1 1.5 1260411,500
KKC-4040150604 1.5 1.5 660410,500
KKC-4040151204 1.5 1.5 1260411,500
KKC-4040200604 2 1.5 660410,500
KKC-4040201204 2 1.5 1260411,500
KKC-4050030705 0.3 2 760613,000
KKC-4050031505 0.3 2 1560614,000
KKC-4050040705 0.4 2 760613,000
KKC-4050041505 0.4 2 1560614,000
KKC-4050050705 0.5 2 760612,000
KKC-4050051505 0.5 2 1560613,000
KKC-4050060705 0.6 2 760612,000
KKC-4050061505 0.6 2 1560613,000
KKC-4050080705 0.8 2 760611,400
KKC-4050081505 0.8 2 1560612,400
KKC-4050100705 1 2 760611,400
KKC-4050101505 1 2 1560612,400
KKC-4050150705 1.5 2 760611,400
KKC-4050151505 1.5 2 1560612,400
KKC-4050200705 2 2 760611,400
KKC-4050201505 2 2 1560612,400
KKC-4060030706 0.3 2.4 760613,000
KKC-4060031506 0.3 2.4 1560614,000
KKC-4060040706 0.4 2.4 760613,000
KKC-4060041506 0.4 2.4 1560614,000
KKC-4060050706 0.5 2.4 760612,000
KKC-4060051506 0.5 2.4 1560613,000
KKC-4060060706 0.6 2.4 760612,000
KKC-4060061506 0.6 2.4 1560613,000
KKC-4060080706 0.8 2.4 760611,400
KKC-4060081506 0.8 2.4 1560612,400
KKC-4060100706 1 2.4 760611,400
KKC-4060101506 1 2.4 1560612,400
KKC-4060150706 1.5 2.4 760611,400
KKC-4060151506 1.5 2.4 1560612,400
KKC-4060200706 2 2.4 760611,400
KKC-4060201506 2 2.4 1560612,400
KKC-4060300706 3 2.4 760611,400
KKC-4060301506 3 2.4 1560612,400
KKC-4080030808 0.3 3 870820,000
KKC-4080031608 0.3 3 1670821,500
KKC-4080040808 0.4 3 870820,000
KKC-4080041608 0.4 3 1670821,500
KKC-4080050808 0.5 3 870818,400
KKC-4080051608 0.5 3 1670819,800
KKC-4080060808 0.6 3 870818,400
KKC-4080061608 0.6 3 1670819,800
KKC-4080080808 0.8 3 870817,400
KKC-4080081608 0.8 3 1670818,800
KKC-408010080 8 1 3 870817,400
KKC-408010160 8 1 3 1670818,800
KKC-408015080 8 1.5 3 870817,400
KKC-408015160 8 1.5 3 1670818,800
KKC-408020080 8 2 3 870817,400
KKC-408020160 8 2 3 1670818,800
KKC-408030080 8 3 3 870817,400
KKC-408030160 8 3 3 1670818,800
KKC-408040080 8 4 3 870817,400
KKC-408040160 8 4 3 1670818,800
KKC-410003100 10 0.3 3.5 1 801024,000
KKC-410003200 10 0.3 3.5 2 801026,000
KKC-410004100 10 0.4 3.5 1 801024,000
KKC-410004200 10 0.4 3.5 2 801026,000
KKC-410005100 10 0.5 3.5 1 801022,000
KKC-410006200 10 0.5 3.5 2 801024,000
KKC-410006100 10 0.6 3.5 1 801022,000
KKC-410006200 10 0.6 3.5 2 801024,000
KKC-410008100 10 0.8 3.5 1 801021,000
KKC-410008200 10 0.8 3.5 2 801023,000
KKC-410010100 10 1 3.5 1 801021,000
KKC-410010200 10 1 3.5 2 801023,000
KKC-410015100 10 1.5 3.5 1 801021,000
KKC-410015200 10 1.5 3.5 2 801023,000
KKC-410020100 10 2 3.5 1 801021,000
KKC-410020200 10 2 3.5 2 801023,000
KKC-410030100 10 3 3.5 1 801021,000
KKC-410030200 10 3 3.5 2 801023,000
KKC-410040100 10 4 3.5 1 801021,000
KKC-410040200 10 4 3.5 2 801023,000
KKC-410050100 10 5 3.5 1 801021,000
KKC-410050200 10 5 3.5 2 801023,000
KKC-412003120 12 0.3 4 12801226,000
KKC-412003240 12 0.3 4 24801228,000
KKC-412004120 12 0.4 4 12801226,000
KKC-412004240 12 0.4 4 24801228,000
KKC-412005120 12 0.5 4 12801224,000
KKC-412005240 12 0.5 4 24801226,000
KKC-412006120 12 0.6 4 12801224,000
KKC-412006240 12 0.6 4 24801226,000
KKC-412008120 12 0.8 4 12801223,000
KKC-412008240 12 0.8 4 24801225,000
