KDSA-2
超硬 ストレートドリル・TiAℓN コーティング
切削条件参考
被削材 | 炭素鋼・一般構造用鋼 SS・S55C | 合金鋼・工具鋼 SCM・SKT・SKS・SKD | ステンレス鋼 SUS303,SUS304,SUS416 | アルミニウム合金 ADC・AC |
||||
---|---|---|---|---|---|---|---|---|
刃 径 mm | 切削速度 m/min | 送り速度 ㎜/rev | 切削速度 m/min | 送り速度 ㎜/rev | 切削速度 m/min | 送り速度 ㎜/rev | 切削速度 m/min | 送り速度 ㎜/rev |
0.3~0.49 | 10~20 | 0.005~0.01 | 5~15 | 0.003~0.008 | 3~6 | 0.001 | 10~30 | 0.01~0.04 |
0.5~0.99 | 15~30 | 0.01~0.02 | 8~25 | 0.005~0.013 | 7~15 | 0.001~0.003 | 15~40 | 0.02~0.06 |
1.0~1.99 | 20~40 | 0.02~0.04 | 10~30 | 0.01~0.02 | 10~25 | 0.003~0.015 | 20~50 | 0.04~0.1 |
2.0~3.0 | 25~45 | 0.04~0.08 | 15~30 | 0.02~0.035 | 13~30 | 0.01~0.025 | 25~60 | 0.08~0.2 |
備 考 | ・工具取付時の振れを最小に抑えてください。 ・切削油を使用して下さい。 |
製品ラインナップ
単位 [寸法:mm/価格:円]
Unit [size:mm/Retail Price:JPY]

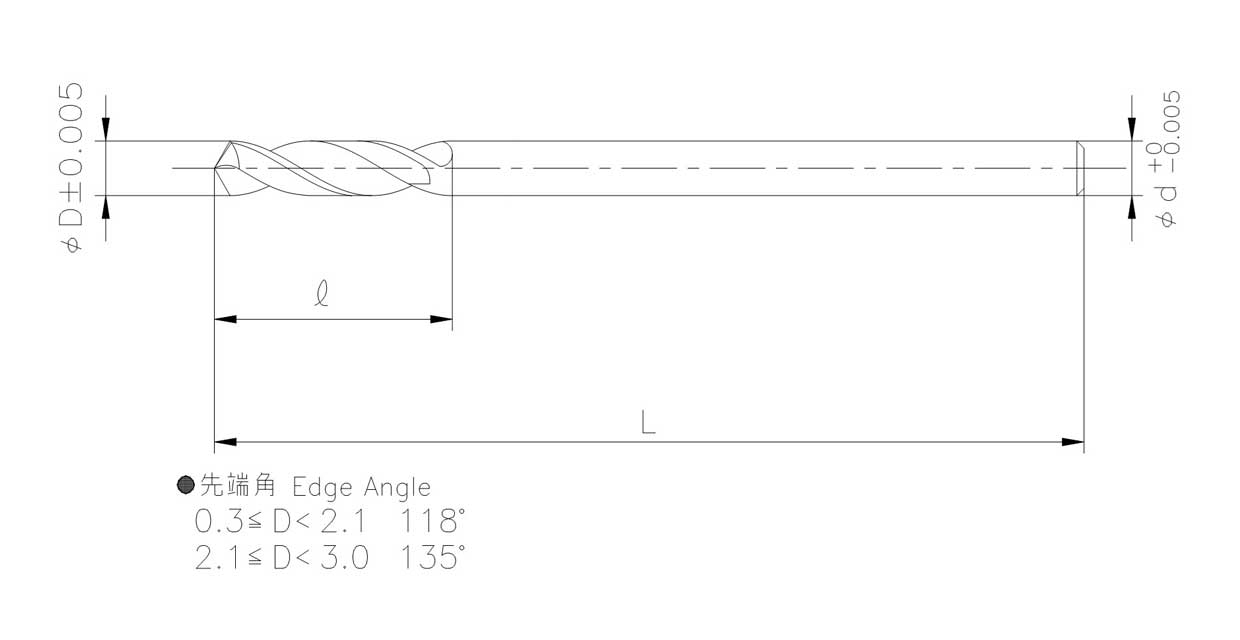

品 番 | 刃径 D | 溝長 ℓ | 全長 L | 標準価格 |
---|---|---|---|---|
KDSA-2030 | 0.3 | 4 | 30 | 4,500 |
KDSA-2031 | 0.31 | 4 | 30 | 5,020 |
KDSA-2032 | 0.32 | 4 | 30 | 5,020 |
KDSA-2033 | 0.33 | 4 | 30 | 5,020 |
KDSA-2034 | 0.34 | 4 | 30 | 5,020 |
KDSA-2035 | 0.35 | 4 | 30 | 5,020 |
KDSA-2036 | 0.36 | 4 | 30 | 5,020 |
KDSA-2037 | 0.37 | 4 | 30 | 5,020 |
KDSA-2038 | 0.38 | 4 | 30 | 5,020 |
KDSA-2039 | 0.39 | 4 | 30 | 5,020 |
KDSA-2040 | 0.4 | 5 | 30 | 4,220 |
KDSA-2041 | 0.41 | 5 | 30 | 4,710 |
KDSA-2042 | 0.42 | 5 | 30 | 4,710 |
KDSA-2043 | 0.43 | 5 | 30 | 4,710 |
KDSA-2044 | 0.44 | 5 | 30 | 4,710 |
KDSA-2045 | 0.45 | 5 | 30 | 4,710 |
KDSA-2046 | 0.46 | 5 | 30 | 4,710 |
KDSA-2047 | 0.47 | 5 | 30 | 4,710 |
KDSA-2048 | 0.48 | 5 | 30 | 4,710 |
KDSA-2049 | 0.49 | 5 | 30 | 4,710 |
KDSA-2050 | 0.5 | 6 | 30 | 3,820 |
KDSA-2051 | 0.51 | 6 | 30 | 4,200 |
KDSA-2052 | 0.52 | 6 | 30 | 4,200 |
KDSA-2053 | 0.53 | 6 | 30 | 4,200 |
KDSA-2054 | 0.54 | 6 | 30 | 4,200 |
KDSA-2055 | 0.55 | 6 | 30 | 4,200 |
KDSA-2056 | 0.56 | 6 | 30 | 4,200 |
KDSA-2057 | 0.57 | 6 | 30 | 4,200 |
KDSA-2058 | 0.58 | 6 | 30 | 4,200 |
KDSA-2059 | 0.59 | 6 | 30 | 4,200 |
KDSA-2060 | 0.6 | 6 | 30 | 3,820 |
KDSA-2061 | 0.61 | 6 | 30 | 4,200 |
KDSA-2062 | 0.62 | 6 | 30 | 4,200 |
KDSA-2063 | 0.63 | 6 | 30 | 4,200 |
KDSA-2064 | 0.64 | 6 | 30 | 4,200 |
KDSA-2065 | 0.65 | 6 | 30 | 4,200 |
KDSA-2066 | 0.66 | 6 | 30 | 4,200 |
KDSA-2067 | 0.67 | 6 | 30 | 4,200 |
KDSA-2068 | 0.68 | 6 | 30 | 4,200 |
KDSA-2069 | 0.69 | 6 | 30 | 4,200 |
KDSA-2070 | 0.7 | 12 | 40 | 3,820 |
KDSA-2071 | 0.71 | 12 | 40 | 4,200 |
KDSA-2072 | 0.72 | 12 | 40 | 4,200 |
KDSA-2073 | 0.73 | 12 | 40 | 4,200 |
KDSA-2074 | 0.74 | 12 | 40 | 4,200 |
KDSA-2075 | 0.75 | 12 | 40 | 4,200 |
KDSA-2076 | 0.76 | 12 | 40 | 4,200 |
KDSA-2077 | 0.77 | 12 | 40 | 4,200 |
KDSA-2078 | 0.78 | 12 | 40 | 4,200 |
KDSA-2079 | 0.79 | 12 | 40 | 4,200 |
KDSA-2080 | 0.8 | 12 | 40 | 3,820 |
KDSA-2081 | 0.81 | 12 | 40 | 4,200 |
KDSA-2082 | 0.82 | 12 | 40 | 4,200 |
KDSA-2083 | 0.83 | 12 | 40 | 4,200 |
KDSA-2084 | 0.84 | 12 | 40 | 4,200 |
KDSA-2085 | 0.85 | 12 | 40 | 4,200 |
KDSA-2086 | 0.86 | 12 | 40 | 4,200 |
KDSA-2087 | 0.87 | 12 | 40 | 4,200 |
KDSA-2088 | 0.88 | 12 | 40 | 4,200 |
KDSA-2089 | 0.89 | 12 | 40 | 4,200 |
KDSA-2090 | 0.9 | 12 | 40 | 3,820 |
KDSA-2091 | 0.91 | 12 | 40 | 4,200 |
KDSA-2092 | 0.92 | 12 | 40 | 4,200 |
KDSA-2093 | 0.93 | 12 | 40 | 4,200 |
KDSA-2094 | 0.94 | 12 | 40 | 4,200 |
KDSA-2095 | 0.95 | 12 | 40 | 4,200 |
KDSA-2096 | 0.96 | 12 | 40 | 4,200 |
KDSA-2097 | 0.97 | 12 | 40 | 4,200 |
KDSA-2098 | 0.98 | 12 | 40 | 4,200 |
KDSA-2099 | 0.99 | 12 | 40 | 4,200 |
KDSA-2100 | 1 | 15 | 40 | 3,820 |
KDSA-2101 | 1.01 | 15 | 40 | 4,200 |
KDSA-2102 | 1.02 | 15 | 40 | 4,200 |
KDSA-2103 | 1.03 | 15 | 40 | 4,200 |
KDSA-2104 | 1.04 | 15 | 40 | 4,200 |
KDSA-2105 | 1.05 | 15 | 40 | 4,200 |
KDSA-2106 | 1.06 | 15 | 40 | 4,200 |
KDSA-2107 | 1.07 | 15 | 40 | 4,200 |
KDSA-2108 | 1.08 | 15 | 40 | 4,200 |
KDSA-2109 | 1.09 | 15 | 40 | 4,200 |
KDSA-2110 | 1.1 | 15 | 40 | 3,820 |
KDSA-2111 | 1.11 | 15 | 40 | 4,200 |
KDSA-2112 | 1.12 | 15 | 40 | 4,200 |
KDSA-2113 | 1.13 | 15 | 40 | 4,200 |
KDSA-2114 | 1.14 | 15 | 40 | 4,200 |
KDSA-2115 | 1.15 | 15 | 40 | 4,200 |
KDSA-2116 | 1.16 | 15 | 40 | 4,200 |
KDSA-2117 | 1.17 | 15 | 40 | 4,200 |
KDSA-2118 | 1.18 | 15 | 40 | 4,200 |
KDSA-2119 | 1.19 | 15 | 40 | 4,200 |
KDSA-2120 | 1.2 | 15 | 40 | 3,820 |
KDSA-2121 | 1.21 | 15 | 40 | 4,200 |
KDSA-2122 | 1.22 | 15 | 40 | 4,200 |
KDSA-2123 | 1.23 | 15 | 40 | 4,200 |
KDSA-2124 | 1.24 | 15 | 40 | 4,200 |
KDSA-2125 | 1.25 | 15 | 40 | 4,200 |
KDSA-2126 | 1.26 | 15 | 40 | 4,200 |
KDSA-2127 | 1.27 | 15 | 40 | 4,200 |
KDSA-2128 | 1.28 | 15 | 40 | 4,200 |
KDSA-2129 | 1.29 | 15 | 40 | 4,200 |
KDSA-2130 | 1.3 | 16 | 40 | 3,820 |
KDSA-2131 | 1.31 | 16 | 40 | 4,200 |
KDSA-2132 | 1.32 | 16 | 40 | 4,200 |
KDSA-2133 | 1.33 | 16 | 40 | 4,200 |
KDSA-2134 | 1.34 | 16 | 40 | 4,200 |
KDSA-2135 | 1.35 | 16 | 40 | 4,200 |
KDSA-2136 | 1.36 | 16 | 40 | 4,200 |
KDSA-2137 | 1.37 | 16 | 40 | 4,200 |
KDSA-2138 | 1.38 | 16 | 40 | 4,200 |
KDSA-2139 | 1.39 | 16 | 40 | 4,200 |
KDSA-2140 | 1.4 | 16 | 40 | 3,820 |
KDSA-2141 | 1.41 | 16 | 40 | 4,200 |
KDSA-2142 | 1.42 | 16 | 40 | 4,200 |
KDSA-2143 | 1.43 | 16 | 40 | 4,200 |
KDSA-2144 | 1.44 | 16 | 40 | 4,200 |
KDSA-2145 | 1.45 | 16 | 40 | 4,200 |
KDSA-2146 | 1.46 | 16 | 40 | 4,200 |
KDSA-2147 | 1.47 | 16 | 40 | 4,200 |
KDSA-2148 | 1.48 | 16 | 40 | 4,200 |
KDSA-2149 | 1.49 | 16 | 40 | 4,200 |
KDSA-2150 | 1.5 | 16 | 40 | 3,820 |
KDSA-2151 | 1.51 | 16 | 40 | 4,620 |
KDSA-2152 | 1.52 | 16 | 40 | 4,620 |
KDSA-2153 | 1.53 | 16 | 40 | 4,620 |
KDSA-2154 | 1.54 | 16 | 40 | 4,620 |
KDSA-2155 | 1.55 | 16 | 40 | 4,620 |
KDSA-2156 | 1.56 | 16 | 40 | 4,620 |
KDSA-2157 | 1.57 | 16 | 40 | 4,620 |
KDSA-2158 | 1.58 | 16 | 40 | 4,620 |
KDSA-2159 | 1.59 | 16 | 40 | 4,620 |
KDSA-2160 | 1.6 | 18 | 40 | 4,160 |
KDSA-2161 | 1.61 | 18 | 40 | 4,620 |
KDSA-2162 | 1.62 | 18 | 40 | 4,620 |
KDSA-2163 | 1.63 | 18 | 40 | 4,620 |
KDSA-2164 | 1.64 | 18 | 40 | 4,620 |
KDSA-2165 | 1.65 | 18 | 40 | 4,620 |
KDSA-2166 | 1.66 | 18 | 40 | 4,620 |
KDSA-2167 | 1.67 | 18 | 40 | 4,620 |
KDSA-2168 | 1.68 | 18 | 40 | 4,620 |
KDSA-2169 | 1.69 | 18 | 40 | 4,620 |
KDSA-2170 | 1.7 | 18 | 40 | 4,160 |
KDSA-2171 | 1.71 | 18 | 40 | 4,620 |
KDSA-2172 | 1.72 | 18 | 40 | 4,620 |
KDSA-2173 | 1.73 | 18 | 40 | 4,620 |
KDSA-2174 | 1.74 | 18 | 40 | 4,620 |
KDSA-2175 | 1.75 | 18 | 40 | 4,620 |
KDSA-2176 | 1.76 | 18 | 40 | 4,620 |
KDSA-2177 | 1.77 | 18 | 40 | 4,620 |
KDSA-2178 | 1.78 | 18 | 40 | 4,620 |
KDSA-2179 | 1.79 | 18 | 40 | 4,620 |
KDSA-2180 | 1.8 | 18 | 40 | 4,160 |
KDSA-2181 | 1.81 | 18 | 40 | 4,620 |
KDSA-2182 | 1.82 | 18 | 40 | 4,620 |
KDSA-2183 | 1.83 | 18 | 40 | 4,620 |
KDSA-2184 | 1.84 | 18 | 40 | 4,620 |
KDSA-2185 | 1.85 | 18 | 40 | 4,620 |
KDSA-2186 | 1.86 | 18 | 40 | 4,620 |
KDSA-2187 | 1.87 | 18 | 40 | 4,620 |
KDSA-2188 | 1.88 | 18 | 40 | 4,620 |
KDSA-2189 | 1.89 | 18 | 40 | 4,620 |
KDSA-2190 | 1.9 | 18 | 40 | 4,160 |
KDSA-2191 | 1.91 | 18 | 40 | 4,620 |
KDSA-2192 | 1.92 | 18 | 40 | 4,620 |
KDSA-2193 | 1.93 | 18 | 40 | 4,620 |
KDSA-2194 | 1.94 | 18 | 40 | 4,620 |
KDSA-2195 | 1.95 | 18 | 40 | 4,620 |
KDSA-2196 | 1.96 | 18 | 40 | 4,620 |
KDSA-2197 | 1.97 | 18 | 40 | 4,620 |
KDSA-2198 | 1.98 | 18 | 40 | 4,620 |
KDSA-2199 | 1.99 | 18 | 40 | 4,620 |
KDSA-2200 | 2 | 18 | 40 | 4,160 |
KDSA-2201 | 2.01 | 18 | 40 | 4,800 |
KDSA-2202 | 2.02 | 18 | 40 | 4,800 |
KDSA-2203 | 2.03 | 18 | 40 | 4,800 |
KDSA-2204 | 2.04 | 18 | 40 | 4,800 |
KDSA-2205 | 2.05 | 18 | 40 | 4,800 |
KDSA-2206 | 2.06 | 18 | 40 | 4,800 |
KDSA-2207 | 2.07 | 18 | 40 | 4,800 |
KDSA-2208 | 2.08 | 18 | 40 | 4,800 |
KDSA-2209 | 2.09 | 18 | 40 | 4,800 |
KDSA-2210 | 2.1 | 20 | 45 | 4,340 |
KDSA-2211 | 2.11 | 20 | 45 | 4,800 |
KDSA-2212 | 2.12 | 20 | 45 | 4,800 |
KDSA-2213 | 2.13 | 20 | 45 | 4,800 |
KDSA-2214 | 2.14 | 20 | 45 | 4,800 |
KDSA-2215 | 2.15 | 20 | 45 | 4,800 |
KDSA-2216 | 2.16 | 20 | 45 | 4,800 |
KDSA-2217 | 2.17 | 20 | 45 | 4,800 |
KDSA-2218 | 2.18 | 20 | 45 | 4,800 |
KDSA-2219 | 2.19 | 20 | 45 | 4,800 |
KDSA-2220 | 2.2 | 20 | 45 | 4,340 |
KDSA-2221 | 2.21 | 20 | 45 | 4,800 |
KDSA-2222 | 2.22 | 20 | 45 | 4,800 |
KDSA-2223 | 2.23 | 20 | 45 | 4,800 |
KDSA-2224 | 2.24 | 20 | 45 | 4,800 |
KDSA-2225 | 2.25 | 20 | 45 | 4,800 |
KDSA-2226 | 2.26 | 20 | 45 | 4,800 |
KDSA-2227 | 2.27 | 20 | 45 | 4,800 |
KDSA-2228 | 2.28 | 20 | 45 | 4,800 |
KDSA-2229 | 2.29 | 20 | 45 | 4,800 |
KDSA-2230 | 2.3 | 20 | 45 | 4,340 |
KDSA-2231 | 2.31 | 20 | 45 | 4,800 |
KDSA-2232 | 2.32 | 20 | 45 | 4,800 |
KDSA-2233 | 2.33 | 20 | 45 | 4,800 |
KDSA-2234 | 2.34 | 20 | 45 | 4,800 |
KDSA-2235 | 2.35 | 20 | 45 | 4,800 |
KDSA-2236 | 2.36 | 20 | 45 | 4,800 |
KDSA-2237 | 2.37 | 20 | 45 | 4,800 |
KDSA-2238 | 2.38 | 20 | 45 | 4,800 |
KDSA-2239 | 2.39 | 20 | 45 | 4,800 |
KDSA-2240 | 2.4 | 20 | 45 | 4,340 |
KDSA-2241 | 2.41 | 20 | 45 | 4,800 |
KDSA-2242 | 2.42 | 20 | 45 | 4,800 |
KDSA-2243 | 2.43 | 20 | 45 | 4,800 |
KDSA-2244 | 2.44 | 20 | 45 | 4,800 |
KDSA-2245 | 2.45 | 20 | 45 | 4,800 |
KDSA-2246 | 2.46 | 20 | 45 | 4,800 |
KDSA-2247 | 2.47 | 20 | 45 | 4,800 |
KDSA-2248 | 2.48 | 20 | 45 | 4,800 |
KDSA-2249 | 2.49 | 20 | 45 | 4,800 |
KDSA-2250 | 2.5 | 20 | 45 | 4,340 |
KDSA-2251 | 2.51 | 20 | 45 | 5,420 |
KDSA-2252 | 2.52 | 20 | 45 | 5,420 |
KDSA-2253 | 2.53 | 20 | 45 | 5,420 |
KDSA-2254 | 2.54 | 20 | 45 | 5,420 |
KDSA-2255 | 2.55 | 20 | 45 | 5,420 |
KDSA-2256 | 2.56 | 20 | 45 | 5,420 |
KDSA-2257 | 2.57 | 20 | 45 | 5,420 |
KDSA-2258 | 2.58 | 20 | 45 | 5,420 |
KDSA-2259 | 2.59 | 20 | 45 | 5,420 |
KDSA-2260 | 2.6 | 20 | 45 | 4,840 |
KDSA-2261 | 2.61 | 20 | 45 | 5,420 |
KDSA-2262 | 2.62 | 20 | 45 | 5,420 |
KDSA-2263 | 2.63 | 20 | 45 | 5,420 |
KDSA-2264 | 2.64 | 20 | 45 | 5,420 |
KDSA-2265 | 2.65 | 20 | 45 | 5,420 |
KDSA-2266 | 2.66 | 20 | 45 | 5,420 |
KDSA-2267 | 2.67 | 20 | 45 | 5,420 |
KDSA-2268 | 2.68 | 20 | 45 | 5,420 |
KDSA-2269 | 2.69 | 20 | 45 | 5,420 |
KDSA-2270 | 2.7 | 20 | 45 | 4,840 |
KDSA-2271 | 2.71 | 20 | 45 | 5,420 |
KDSA-2272 | 2.72 | 20 | 45 | 5,420 |
KDSA-2273 | 2.73 | 20 | 45 | 5,420 |
KDSA-2274 | 2.74 | 20 | 45 | 5,420 |
KDSA-2275 | 2.75 | 20 | 45 | 5,420 |
KDSA-2276 | 2.76 | 20 | 45 | 5,420 |
KDSA-2277 | 2.77 | 20 | 45 | 5,420 |
KDSA-2278 | 2.78 | 20 | 45 | 5,420 |
KDSA-2279 | 2.79 | 20 | 45 | 5,420 |
KDSA-2280 | 2.8 | 20 | 45 | 4,840 |
KDSA-2281 | 2.81 | 20 | 45 | 5,420 |
KDSA-2282 | 2.82 | 20 | 45 | 5,420 |
KDSA-2283 | 2.83 | 20 | 45 | 5,420 |
KDSA-2284 | 2.84 | 20 | 45 | 5,420 |
KDSA-2285 | 2.85 | 20 | 45 | 5,420 |
KDSA-2286 | 2.86 | 20 | 45 | 5,420 |
KDSA-2287 | 2.87 | 20 | 45 | 5,420 |
KDSA-2288 | 2.88 | 20 | 45 | 5,420 |
KDSA-2289 | 2.89 | 20 | 45 | 5,420 |
KDSA-2290 | 2.9 | 20 | 45 | 4,840 |
KDSA-2291 | 2.91 | 20 | 45 | 5,420 |
KDSA-2292 | 2.92 | 20 | 45 | 5,420 |
KDSA-2293 | 2.93 | 20 | 45 | 5,420 |
KDSA-2294 | 2.94 | 20 | 45 | 5,420 |
KDSA-2295 | 2.95 | 20 | 45 | 5,420 |
KDSA-2296 | 2.96 | 20 | 45 | 5,420 |
KDSA-2297 | 2.97 | 20 | 45 | 5,420 |
KDSA-2298 | 2.98 | 20 | 45 | 5,420 |
KDSA-2299 | 2.99 | 20 | 45 | 5,420 |
KDSA-2300 | 3 | 20 | 45 | 4,840 |
