KDLL-2
超硬 ストレートスーパーロングドリル
Previous
Next
切削条件参考
| 被削材 | 炭素鋼・一般構造用鋼 SS・S55C | 合金鋼・工具鋼 SCM・SKT・SKS・SKD | ステンレス鋼 SUS303,SUS304,SUS416 | アルミニウム合金 ADC・AC |
||||
|---|---|---|---|---|---|---|---|---|
| 刃 径 | 切削速度 | 送り速度 | 切削速度 | 送り速度 | 切削速度 | 送り速度 | 切削速度 | 送り速度 |
| mm | m/min | ㎜/rev | m/min | ㎜/rev | m/min | ㎜/rev | m/min | ㎜/rev |
| 0.3～0.49 | 9～15 | 0.003 | 8～14 | 2E-3 | 5～8 | 0.0005～0.001 | 10～30 | 0.01～0.04 |
| 0.5～0.99 | 15～30 | 0.008～0.017 | 12～25 | 0.005～0.013 | 9～15 | 0.001～0.003 | 15～40 | 0.02～0.06 |
| 1.0～1.99 | 20～45 | 0.02～0.04 | 15～35 | 0.01～0.018 | 10～25 | 0.005～0.015 | 20～50 | 0.04～0.1 |
| 2.0～3.0 | 25～55 | 0.05～0.07 | 17～28 | 0.02～0.035 | 13～30 | 0.02～0.03 | 25～60 | 0.08～0.2 |
製品ラインナップ
単位 [寸法：mm／価格：円]
Unit [size：mm／Retail Price：JPY]

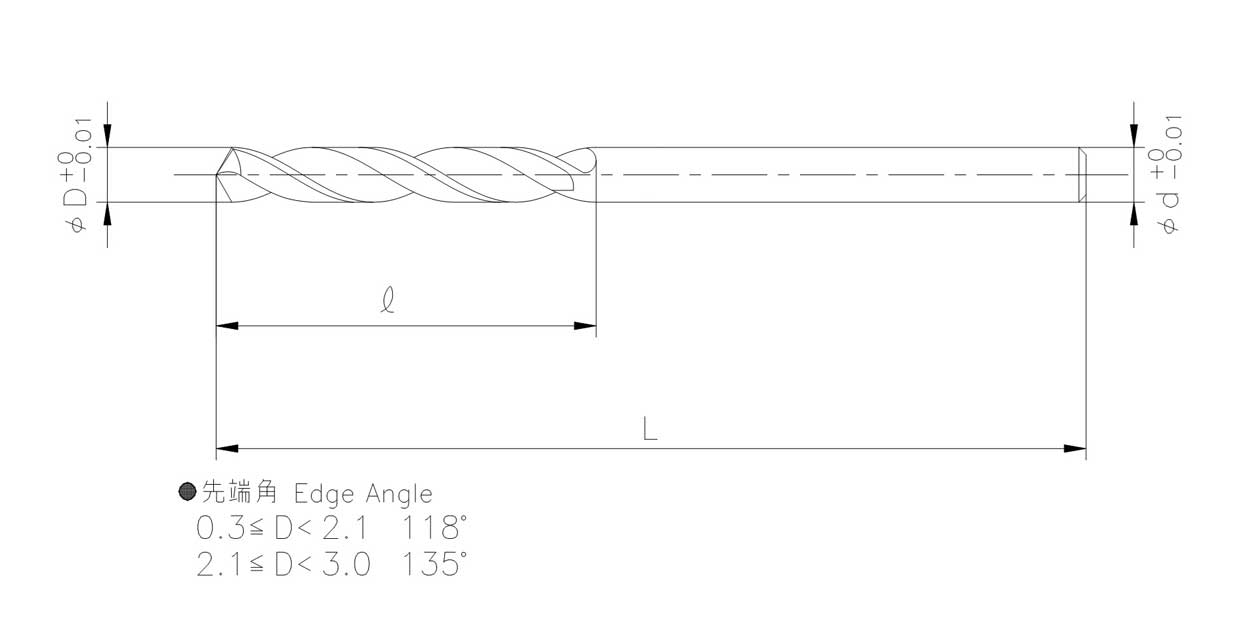

| 品 番 | 刃径 D1 | 刃長 ℓ | 全長 L | 標準価格 |
|---|---|---|---|---|
| KDLL-2030 | 0.3 | 15 | 75 | 5,230 |
| KDLL-2035 | 0.35 | 15 | 75 | 5,230 |
| KDLL-2040 | 0.4 | 15 | 75 | 5,230 |
| KDLL-2045 | 0.45 | 15 | 75 | 5,230 |
| KDLL-2050 | 0.5 | 15 | 75 | 4,190 |
| KDLL-2055 | 0.55 | 20 | 90 | 4,190 |
| KDLL-2060 | 0.6 | 20 | 90 | 4,190 |
| KDLL-2065 | 0.65 | 20 | 90 | 4,190 |
| KDLL-2070 | 0.7 | 20 | 90 | 4,190 |
| KDLL-2075 | 0.75 | 20 | 90 | 4,190 |
| KDLL-2080 | 0.8 | 25 | 100 | 3,910 |
| KDLL-2085 | 0.85 | 25 | 100 | 3,910 |
| KDLL-2090 | 0.9 | 25 | 100 | 3,910 |
| KDLL-2095 | 0.95 | 25 | 100 | 3,910 |
| KDLL-2100 | 1 | 30 | 100 | 3,170 |
| KDLL-2105 | 1.05 | 30 | 100 | 3,820 |
| KDLL-2110 | 1.1 | 30 | 100 | 3,170 |
| KDLL-2115 | 1.15 | 30 | 100 | 3,820 |
| KDLL-2120 | 1.2 | 35 | 100 | 3,170 |
| KDLL-2125 | 1.25 | 35 | 100 | 3,820 |
| KDLL-2130 | 1.3 | 35 | 100 | 3,170 |
| KDLL-2135 | 1.35 | 35 | 100 | 3,820 |
| KDLL-2140 | 1.4 | 40 | 100 | 3,510 |
| KDLL-2145 | 1.45 | 40 | 100 | 4,220 |
| KDLL-2150 | 1.5 | 40 | 100 | 3,510 |
| KDLL-2155 | 1.55 | 40 | 100 | 4,220 |
| KDLL-2160 | 1.6 | 40 | 100 | 3,510 |
| KDLL-2165 | 1.65 | 40 | 100 | 4,220 |
| KDLL-2170 | 1.7 | 40 | 100 | 3,510 |
| KDLL-2175 | 1.75 | 40 | 100 | 4,220 |
| KDLL-2180 | 1.8 | 40 | 100 | 3,510 |
| KDLL-2185 | 1.85 | 40 | 100 | 4,220 |
| KDLL-2190 | 1.9 | 40 | 100 | 3,510 |
| KDLL-2195 | 1.95 | 40 | 100 | 4,220 |
| KDLL-2200 | 2 | 40 | 100 | 5,260 |
| KDLL-2205 | 2.05 | 40 | 100 | 6,310 |
| KDLL-2210 | 2.1 | 40 | 100 | 5,260 |
| KDLL-2215 | 2.15 | 40 | 100 | 6,310 |
| KDLL-2220 | 2.2 | 40 | 100 | 5,260 |
| KDLL-2225 | 2.25 | 40 | 100 | 6,310 |
| KDLL-2230 | 2.3 | 40 | 100 | 5,260 |
| KDLL-2235 | 2.35 | 40 | 100 | 6,310 |
| KDLL-2240 | 2.4 | 50 | 150 | 6,620 |
| KDLL-2245 | 2.45 | 50 | 150 | 7,940 |
| KDLL-2250 | 2.5 | 50 | 150 | 6,620 |
| KDLL-2255 | 2.55 | 50 | 150 | 7,940 |
| KDLL-2260 | 2.6 | 50 | 150 | 8,550 |
| KDLL-2265 | 2.65 | 50 | 150 | 10,280 |
| KDLL-2270 | 2.7 | 50 | 150 | 8,550 |
| KDLL-2275 | 2.75 | 50 | 150 | 10,280 |
| KDLL-2280 | 2.8 | 50 | 150 | 8,550 |
| KDLL-2285 | 2.85 | 50 | 150 | 10,280 |
| KDLL-2290 | 2.9 | 50 | 150 | 8,550 |
| KDLL-2295 | 2.95 | 50 | 150 | 10,280 |
| KDLL-2300 | 3 | 65 | 150 | 9,320 |
