KDL-2
超硬 ストレートロングドリル
切削条件参考
| 被削材 | 炭素鋼・一般構造用鋼 SS・S55C | 合金鋼・工具鋼 SCM・SKT・SKS・SKD | ステンレス鋼 SUS303,SUS304,SUS416 | アルミニウム合金 ADC・AC |
||||
|---|---|---|---|---|---|---|---|---|
| 刃 径 | 切削速度 | 送り速度 | 切削速度 | 送り速度 | 切削速度 | 送り速度 | 切削速度 | 送り速度 |
| mm | m/min | ㎜/rev | m/min | ㎜/rev | m/min | ㎜/rev | m/min | ㎜/rev |
| 0.3～0.49 | 9～15 | 0.003 | 8～14 | 2E-3 | 5～8 | 0.0005～0.001 | 10～30 | 0.01～0.04 |
| 0.5～0.99 | 15～30 | 0.008～0.017 | 12～25 | 0.005～0.013 | 9～15 | 0.001～0.003 | 15～40 | 0.02～0.06 |
| 1.0～1.99 | 20～45 | 0.02～0.04 | 15～35 | 0.01～0.018 | 10～25 | 0.005～0.015 | 20～50 | 0.04～0.1 |
| 2.0～3.0 | 25～55 | 0.05～0.07 | 17～28 | 0.02～0.035 | 13～30 | 0.02～0.03 | 25～60 | 0.08～0.2 |
製品ラインナップ
単位 [寸法：mm／価格：円]
Unit [size：mm／Retail Price：JPY]

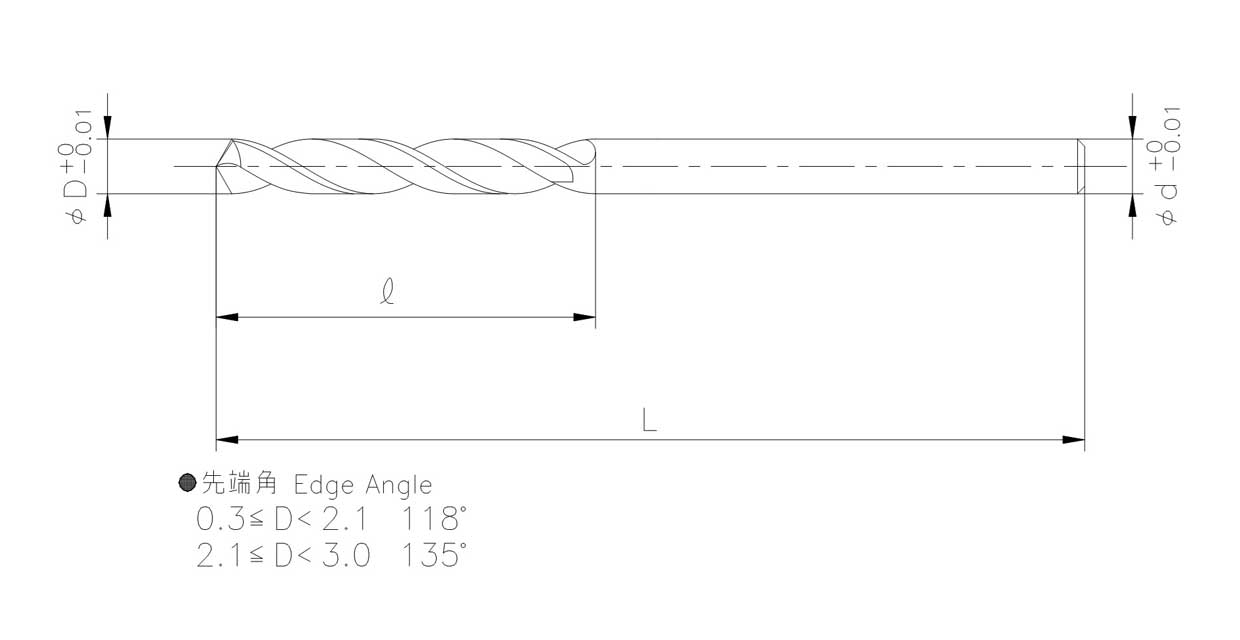

| 品 番 | 刃径 D1 | 刃長 ℓ | 全長 L | 標準価格 |
|---|---|---|---|---|
| KDL-2030 | 0.3 | 10 | 60 | 4,090 |
| KDL-2035 | 0.35 | 10 | 60 | 4,090 |
| KDL-2040 | 0.4 | 10 | 60 | 4,090 |
| KDL-2045 | 0.45 | 10 | 60 | 4,090 |
| KDL-2050 | 0.5 | 10 | 60 | 4,090 |
| KDL-2055 | 0.55 | 15 | 65 | 3,630 |
| KDL-2060 | 0.6 | 15 | 65 | 3,630 |
| KDL-2065 | 0.65 | 15 | 65 | 3,630 |
| KDL-2070 | 0.7 | 15 | 65 | 3,630 |
| KDL-2075 | 0.75 | 15 | 65 | 3,630 |
| KDL-2080 | 0.8 | 20 | 75 | 3,390 |
| KDL-2085 | 0.85 | 20 | 75 | 3,390 |
| KDL-2090 | 0.9 | 20 | 75 | 3,390 |
| KDL-2095 | 0.95 | 20 | 75 | 3,390 |
| KDL-2100 | 1 | 25 | 75 | 2,830 |
| KDL-2105 | 1.05 | 25 | 75 | 3,510 |
| KDL-2110 | 1.1 | 25 | 75 | 2,830 |
| KDL-2115 | 1.15 | 25 | 75 | 3,510 |
| KDL-2120 | 1.2 | 25 | 75 | 2,830 |
| KDL-2125 | 1.25 | 25 | 75 | 3,510 |
| KDL-2130 | 1.3 | 25 | 75 | 2,830 |
| KDL-2135 | 1.35 | 25 | 75 | 3,510 |
| KDL-2140 | 1.4 | 30 | 75 | 2,920 |
| KDL-2145 | 1.45 | 30 | 75 | 3,510 |
| KDL-2150 | 1.5 | 30 | 75 | 2,920 |
| KDL-2155 | 1.55 | 30 | 75 | 3,510 |
| KDL-2160 | 1.6 | 30 | 75 | 2,920 |
| KDL-2165 | 1.65 | 30 | 75 | 3,510 |
| KDL-2170 | 1.7 | 30 | 75 | 2,920 |
| KDL-2175 | 1.75 | 30 | 75 | 3,510 |
| KDL-2180 | 1.8 | 30 | 75 | 2,920 |
| KDL-2185 | 1.85 | 30 | 75 | 3,510 |
| KDL-2190 | 1.9 | 30 | 75 | 2,920 |
| KDL-2195 | 1.95 | 30 | 75 | 3,510 |
| KDL-2200 | 2 | 30 | 75 | 4,310 |
| KDL-2205 | 2.05 | 30 | 75 | 5,170 |
| KDL-2210 | 2.1 | 30 | 75 | 4,310 |
| KDL-2215 | 2.15 | 30 | 75 | 5,170 |
| KDL-2220 | 2.2 | 30 | 75 | 4,310 |
| KDL-2225 | 2.25 | 30 | 75 | 5,170 |
| KDL-2230 | 2.3 | 30 | 75 | 4,310 |
| KDL-2235 | 2.35 | 30 | 75 | 5,170 |
| KDL-2240 | 2.4 | 35 | 100 | 5,390 |
| KDL-2245 | 2.45 | 35 | 100 | 6,460 |
| KDL-2250 | 2.5 | 35 | 100 | 5,390 |
| KDL-2255 | 2.55 | 35 | 100 | 6,460 |
| KDL-2260 | 2.6 | 35 | 100 | 5,390 |
| KDL-2265 | 2.65 | 35 | 100 | 6,460 |
| KDL-2270 | 2.7 | 35 | 100 | 5,390 |
| KDL-2275 | 2.75 | 35 | 100 | 6,650 |
| KDL-2280 | 2.8 | 35 | 100 | 5,540 |
| KDL-2285 | 2.85 | 35 | 100 | 6,650 |
| KDL-2290 | 2.9 | 35 | 100 | 5,540 |
| KDL-2295 | 2.95 | 35 | 100 | 6,650 |
| KDL-2300 | 3 | 50 | 100 | 6,150 |
