BRR-2
CBN2枚刃リブ用コーナーR付エンドミル
Previous
Next
切削条件参考
| 硬 度 | ～HRC55 | ～HRC60 | ～HRC65 | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 被削材 | NAK80、STAVAX等 | SKD11等 | SKH等 | |||||||||
| 刃径 | 回転数 | 送り速度 | 切 込 量 | 回転数 | 送り速度 | 切 込 量 | 回転数 | 送り速度 | 切 込 量 | |||
| mm | min-1 | ㎜/min | Ad ㎜ | Rd ㎜ | min-1 | ㎜/min | Ad ㎜ | Rd ㎜ | min-1 | ㎜/min | Ad ㎜ | Rd ㎜ |
| 0.3 | 50,000 | 200～400 | 0.003～0.01 | 0.03 | 50,000 | 150～300 | 0.004～0.015 | 0.03 | 50,000 | 100～250 | 0.003～0.01 | 0.03 |
| 0.4 | 50,000 | 350～600 | 0.005～0.01 | 0.04 | 50,000 | 200～400 | 0.004～0.015 | 0.04 | 50,000 | 150～300 | 0.005～0.01 | 0.04 |
| 0.5 | 50,000 | 600～900 | 0.01～0.03 | 0.07 | 50,000 | 600～900 | 0.01～0.03 | 0.07 | 50,000 | 500～800 | 0.005～0.01 | 0.07 |
| 1 | 45,000 | 800～1,100 | 0.02～0.04 | 0.3 | 40,000 | 800～1,100 | 0.01～0.03 | 0.3 | 32,000 | 600～900 | 0.01～0.04 | 0.1 |
| 1.5 | 30,000 | 800～1,100 | 0.03～0.05 | 0.5 | 26,500 | 800～1,100 | 0.02～0.04 | 0.5 | 22,000 | 600～900 | 0.015～0.05 | 0.2 |
| 2 | 23,000 | 800～1,100 | 0.04～0.06 | 0.6 | 20,000 | 800～1,100 | 0.02～0.06 | 0.6 | 16,000 | 600～900 | 0.015～0.06 | 0.4 |
| 3 | 15,000 | 700～1,000 | 0.05～0.1 | 0.8 | 13,000 | 700～1,000 | 0.03～0.05 | 0.8 | 10,500 | 600～900 | 0.02～0.05 | 0.6 |
| 4 | 11,500 | 600～800 | 0.05～0.1 | 1.0 | 10,000 | 500～700 | 0.04～0.06 | 1.0 | 8,500 | 400～700 | 0.04～0.08 | 0.8 |
| 5 | 9,000 | 600～800 | 0.06～0.1 | 1.2 | 8,000 | 500～700 | 0.06～0.1 | 1.2 | 7,500 | 350～600 | 0.04～0.08 | 1 |
| 6 | 8,000 | 600～800 | 0.06～0.1 | 1.3 | 7,000 | 500～700 | 0.06～0.1 | 1.3 | 6,000 | 350～600 | 0.05～0.08 | 1.2 |
製品ラインナップ
単位 [寸法：mm／価格：円]
Unit [size：mm／Retail Price：JPY]

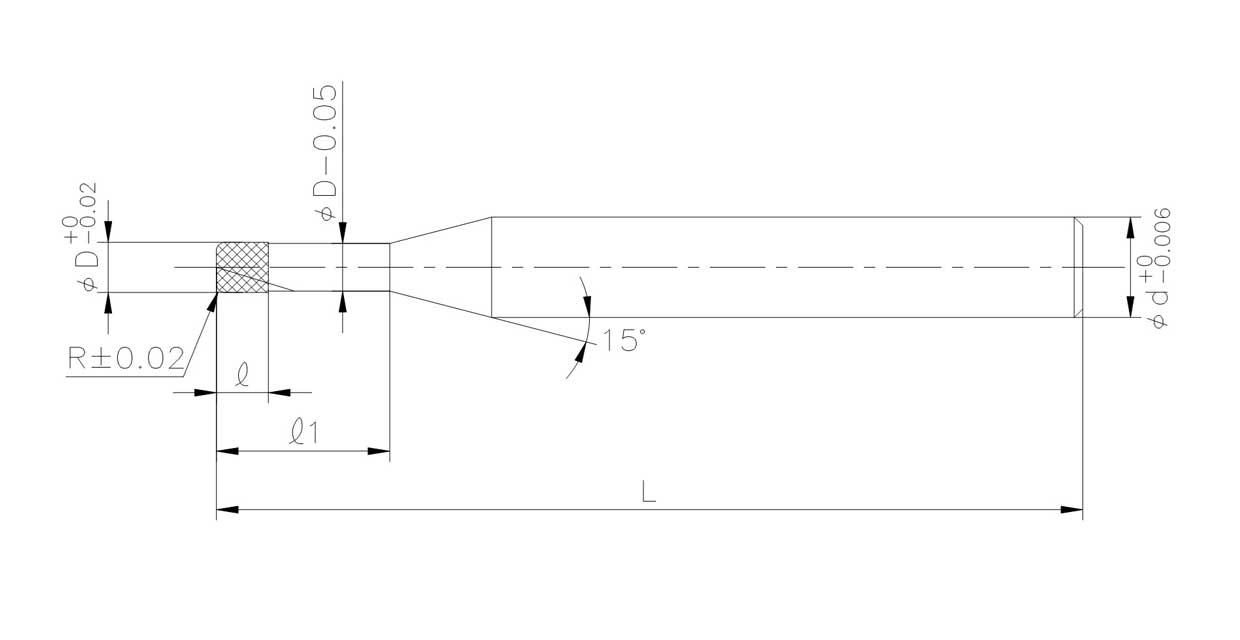

| 品 番 | 刃径 D | コーナーR | 有効長 ℓ1 | 刃長 ℓ | CBN層 | 全長 L | 柄径 d | 標準価格 |
|---|---|---|---|---|---|---|---|---|
| BRR-20502001 | 0.5 | R0.1 | 2 | 0.5 | 0.6 | 40 | 3 | 25,000 |
| BRR-20504001 | 0.5 | R0.1 | 4 | 0.5 | 0.6 | 40 | 3 | 29,800 |
| BRR-20502002 | 0.5 | R0.2 | 2 | 0.5 | 0.6 | 40 | 3 | 25,000 |
| BRR-20504002 | 0.5 | R0.2 | 4 | 0.5 | 0.6 | 40 | 3 | 29,800 |
| BRR-20602001 | 0.6 | R0.1 | 2 | 0.6 | 0.6 | 40 | 3 | 25,000 |
| BRR-20604001 | 0.6 | R0.1 | 4 | 0.6 | 0.6 | 40 | 3 | 29,800 |
| BRR-20602002 | 0.6 | R0.2 | 2 | 0.6 | 0.6 | 40 | 3 | 25,000 |
| BRR-20604002 | 0.6 | R0.2 | 4 | 0.6 | 0.6 | 40 | 3 | 29,800 |
| BRR-20702001 | 0.7 | R0.1 | 2 | 0.7 | 1 | 40 | 3 | 25,000 |
| BRR-20704001 | 0.7 | R0.1 | 4 | 0.7 | 1 | 40 | 3 | 29,800 |
| BRR-20702002 | 0.7 | R0.2 | 2 | 0.7 | 1 | 40 | 3 | 25,000 |
| BRR-20704002 | 0.7 | R0.2 | 4 | 0.7 | 1 | 40 | 3 | 29,800 |
| BRR-20804001 | 0.8 | R0.1 | 4 | 0.8 | 1 | 40 | 3 | 28,700 |
| BRR-20806001 | 0.8 | R0.1 | 6 | 0.8 | 1 | 40 | 3 | 33,000 |
| BRR-20804002 | 0.8 | R0.2 | 4 | 0.8 | 1 | 40 | 3 | 28,700 |
| BRR-20806002 | 0.8 | R0.2 | 6 | 0.8 | 1 | 40 | 3 | 33,000 |
| BRR-20904001 | 0.9 | R0.1 | 4 | 0.9 | 1 | 40 | 3 | 28,700 |
| BRR-20906001 | 0.9 | R0.1 | 6 | 0.9 | 1 | 40 | 3 | 33,000 |
| BRR-20904002 | 0.9 | R0.2 | 4 | 0.9 | 1 | 40 | 3 | 28,700 |
| BRR-20906002 | 0.9 | R0.2 | 6 | 0.9 | 1 | 40 | 3 | 33,000 |
| BRR-21004001 | 1 | R0.1 | 4 | 1 | 1 | 50 | 4 | 20,500 |
| BRR-21006001 | 1 | R0.1 | 6 | 1 | 1 | 50 | 4 | 23,800 |
| BRR-21008001 | 1 | R0.1 | 8 | 1 | 1 | 50 | 4 | 28,700 |
| BRR-21010001 | 1 | R0.1 | 10 | 1 | 1 | 50 | 4 | 35,800 |
| BRR-21004002 | 1 | R0.2 | 4 | 1 | 1 | 50 | 4 | 20,500 |
| BRR-21006002 | 1 | R0.2 | 6 | 1 | 1 | 50 | 4 | 23,800 |
| BRR-21008002 | 1 | R0.2 | 8 | 1 | 1 | 50 | 4 | 28,700 |
| BRR-21010002 | 1 | R0.2 | 10 | 1 | 1 | 50 | 4 | 35,800 |
| BRR-21004003 | 1 | R0.3 | 4 | 1 | 1 | 50 | 4 | 20,500 |
| BRR-21006003 | 1 | R0.3 | 6 | 1 | 1 | 50 | 4 | 23,800 |
| BRR-21008003 | 1 | R0.3 | 8 | 1 | 1 | 50 | 4 | 28,700 |
| BRR-21010003 | 1 | R0.3 | 10 | 1 | 1 | 50 | 4 | 35,800 |
| BRR-21505001 | 1.5 | R0.1 | 5 | 1.5 | 2 | 50 | 4 | 28,700 |
| BRR-21508001 | 1.5 | R0.1 | 8 | 1.5 | 2 | 50 | 4 | 34,700 |
| BRR-21505002 | 1.5 | R0.2 | 5 | 1.5 | 2 | 50 | 4 | 28,700 |
| BRR-21508002 | 1.5 | R0.2 | 8 | 1.5 | 2 | 50 | 4 | 34,700 |
| BRR-21505003 | 1.5 | R0.3 | 5 | 1.5 | 2 | 50 | 4 | 28,700 |
| BRR-21508003 | 1.5 | R0.3 | 8 | 1.5 | 2 | 50 | 4 | 34,700 |
| BRR-22006001 | 2 | R0.1 | 6 | 1.5 | 2 | 50 | 4 | 25,000 |
| BRR-22008001 | 2 | R0.1 | 8 | 1.5 | 2 | 50 | 4 | 28,700 |
| BRR-22010001 | 2 | R0.1 | 10 | 1.5 | 2 | 50 | 4 | 30,000 |
| BRR-22006002 | 2 | R0.2 | 6 | 1.5 | 2 | 50 | 4 | 25,000 |
| BRR-22008002 | 2 | R0.2 | 8 | 1.5 | 2 | 50 | 4 | 28,700 |
| BRR-22010002 | 2 | R0.2 | 10 | 1.5 | 2 | 50 | 4 | 30,000 |
| BRR-22006003 | 2 | R0.3 | 6 | 1.5 | 2 | 50 | 4 | 25,000 |
| BRR-22008003 | 2 | R0.3 | 8 | 1.5 | 2 | 50 | 4 | 28,700 |
| BRR-22010003 | 2 | R0.3 | 10 | 1.5 | 2 | 50 | 4 | 30,000 |
| BRR-22006004 | 2 | R0.4 | 6 | 1.5 | 2 | 50 | 4 | 25,000 |
| BRR-22008004 | 2 | R0.4 | 8 | 1.5 | 2 | 50 | 4 | 28,700 |
| BRR-22010004 | 2 | R0.4 | 10 | 1.5 | 2 | 50 | 4 | 30,000 |
| BRR-22006005 | 2 | R0.5 | 6 | 1.5 | 2 | 50 | 4 | 25,000 |
| BRR-22008005 | 2 | R0.5 | 8 | 1.5 | 2 | 50 | 4 | 28,700 |
| BRR-22010005 | 2 | R0.5 | 10 | 1.5 | 2 | 50 | 4 | 30,000 |
